This product is manufactured by
DAE-BOONG ELECTRIC

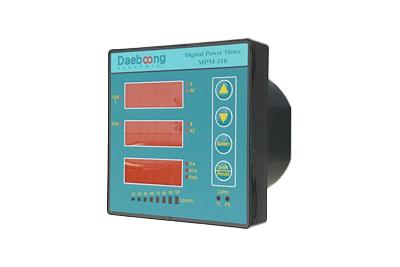

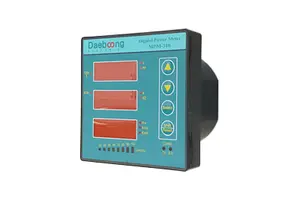

Multi Function Digital Power Meter
Model Name
MPM 310
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134981
Product Name
Multi Function Digital Power Meter
Model Name
MPM 310
Size
-
Weight
-
Product Details
MPM310 Power Meter는 단상 전기의 계측을 정확하고 신속히 측정 할수 있도록 고성능의 MPU를 채택하여 설계되었고 전면부의 FND 혹은 통신방식을 이용하여 계측항목을 표시 할수 있다. 또한 Galvanic Isolation 처리가 되어 외부 써지나 노이즈에 강하게 설계되어 있다.
정격
| 번호 | 측정계수 | FND형식 | 단위 | Full Scale |
| 1 | Voltage | xxx.x | V (KV) | Highest Possible Value 9,999KV |
| 2 | Current | x.xxx | A (KA) | Highest Possible Value 9,999KA |
| 3 | Active Power | x.xxx | KW | 10,000 KW |
| 4 | Reactive Power | x.xxx | KVAR | 10,000 KVAR |
| 5 | Apparent Power | x.xxx | KVA | 10,000 KVA |
| 6 | Active Energy | xxxx | KWh | 99,999,999 KWh |
| 7 | Power Factor | x.xx | % | '-1,00~1,00 |
| 8 | Frequency | xx.x | Hz | 45.0 to 65.0 Hz |
| 9 | PEAK | xxxx | 각항목 | - |
사양
| 공 급 전 원 | AC 90~250V (45~65Hz) / DC 110~300V |
| 소 비 전 력 | 5VA |
| 전 압 입 력 | 정상전압 -270Vrms |
| 전 류 입 력 | 정격전류 5A |
| 절 연 방 식 | Galvanic Isolation |
| 사 용 온 도 | '-20 ~ 60℃ |
| 사 용 습 도 | 0~90% (NONE CONDENSING) |
| 통신방식(옵션) | RS-485, Half Duplex, 2Wire, Multi Drop 방식 |
| Dimension | 117W×117H×109D |
