This product is manufactured by
DAE-BOONG ELECTRIC

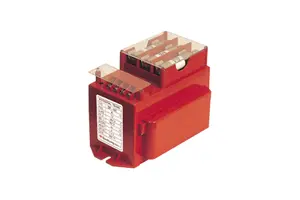

3Phase Potential Low Transformer
Model Name
DP-30
Data
Drawing-Dae Boong Electric-Transformers-3Phase Potential Low Transformer-DP-30, DP-40
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134955
Product Name
3Phase Potential Low Transformer
Model Name
DP-30, DP-40
Size
-
Weight
-
Product Details
Connections
Rating
| Standard | KSC 1706 |
| Max Voltage | 0.46Kv |
| Accuracy Class | 1.0 |
| P'ry Voltage(V) | 220~440, 380√3 |
| S'ry Voltage(V) | 110~220, 190√3 |
| Frequency | 50/60Hz |
Specification
| Model | P'ry Voltage | S'ry Voltage | Burden(VA) | Weight |
| DP-30 | 220~440 | 110~220 | (25 x 2)50 | 3.6 |
| DP-40 | 380√3 | 190√3 | (17 x 3)50 | 4 |
