Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134941
Product Name

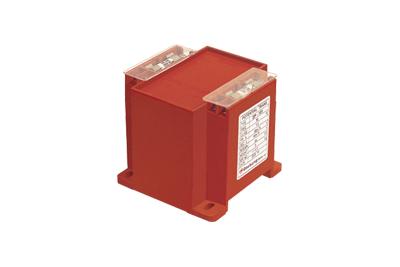

Voltage Potential Transformer
Model Name
DP-102, DP-10G, DP-103
Size
-
Weight
-
Product Details
Rating
| Standard | KSC 1706 |
| Max Voltage | 0.46Kv |
| Accuracy Class | 1.0 |
| P'ry Voltage(V) | 220~440, 380/ √3 |
| S'ry Voltage(V) | 110, 190/ √3 |
| Frequency | 50/60Hz |
Specification
| 1'st Voltage(V) | 2'nd Voltage(V) | 3'rd Voltage(V) | Rated Burden(VA) | Weight(Kg) | |
| DP-102 | 220~440, 380/ √3 | 110, 190/ √3 | 100 | ≒5 | |
| DP-10G | 208/ √3~440/ √3 | 110/ √3 or 190/ √3 | 110/3 or 190/3 | 50/100 | ≒5 |
| DP-103 | 220~440, 380/ √3 | 110, 190/ √3 | 200 | ≒6.5 |
