This product is manufactured by
DAE-BOONG ELECTRIC

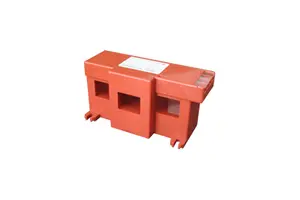

3Phaes Current Transformer
Model Name
CD-S400
Data
Drawing-Dae Boong Electric-Transformers-3Phaes Current Transformer-CD-S400
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134925
Product Name
3Phaes Current Transformer
Model Name
CD-S400, CD-S400A
Size
-
Weight
-
Product Details
Rating
| CD-S100 / CD-S100A | |
|---|---|
| Max Voltage | 1150V |
| Frequency | 50Hz-60Hz |
| Accuracy Class | 1.0% |
| Over Current Factor | 40In/1Sec |
Specification
| Pri.Cur(A) | Sec.Cur(A) | Burden(VA) | Class(%) | Weight(kg) | Hole Size (mm) |
||
|---|---|---|---|---|---|---|---|
| 3CT | 2CT | ||||||
| CD-S400 CD-S400A |
300 | 5 | 15 | 1.0 | ≒0.90 | ≒0.70 | 31X24-3 |
| 400 | 5 | 15 | 1.0 | ≒0.95 | ≒0.73 | ||
| 500 | 5 | 15 | 1.0 | ≒1.00 | ≒0.76 | ||
