This product is manufactured by
DAE-BOONG ELECTRIC

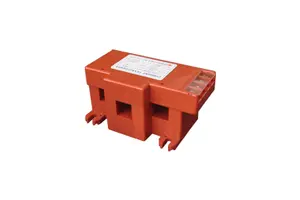

3Phaes Current Transformer
Model Name
CD-S100
Data
Drawing-Dae Boong Electric-Transformers-3Phaes Current Transformer-CD-S100
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Product Type
Machine
Brand
-
SKU
134922
Product Name
3Phaes Current Transformer
Model Name
CD-S100, CD-S100A
Size
-
Weight
-
Product Details
Rating
| CD-S100 / CD-S100A | |
|---|---|
| Max Voltage | 1150V |
| Frequency | 50Hz-60Hz |
| Accuracy Class | 1.0% ~ 3.0% |
| Over Current Factor | 40In/1Sec |
Specification
| Pri.Cur(A) | Sec.Cur(A) | Burden(VA) | Class(%) | Weight(kg) | Hole Size (mm) |
||
|---|---|---|---|---|---|---|---|
| 3CT | 2CT | ||||||
| CD-S100 CD-S100A |
50 | 5 | 3 | 3.0 | ≒0.60 | ≒0.45 | 17X17-3 |
| 100 | 5 | 5 | 3.0 | ≒0.62 | ≒0.47 | ||
| 150 | 5 | 5 | 1.0 | ≒0.65 | ≒0.50 | ||
