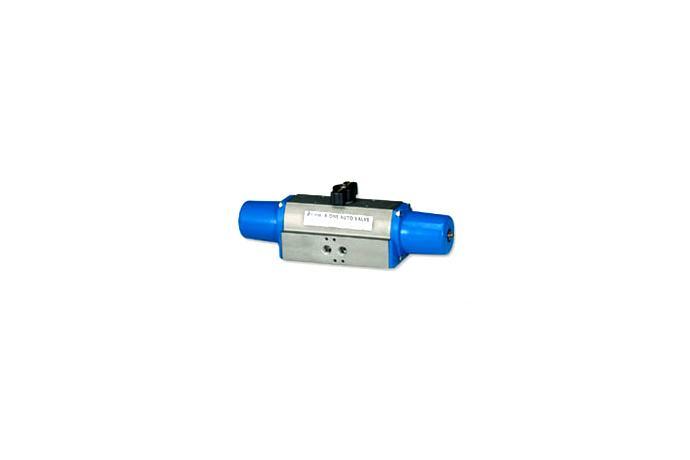

Rotory Acutuator - Single

Model

Series

Pneumatic Actuator


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Ball Valve, Butterfly Valve, Plug Valve, Damper Control



Features

■ Scotch - Yoke type
■ No metal to metal touch
■ ISO 5211, DIN 3337
■ Anodized surface & double coated interior



Specification

Item AS40 AS50 AS65 AS80 AS100 AS140 AS200 AS200D
Operating Type R&P Scotch - Yoke Piston
Operating Media Compressed Dry Air
Operating Pressure 4 ~ 7kg/㎠
Rotating Angle 90 ˚ ±3 ˚
Operating Temperature -10 ~ 60 ℃
Weight (kg) 1 1.7 2.9 5.4 9.5 26.5 105 146



Part and Material



A-One Valve Rotory Acutuator - Single AS Series

No. Part Name Materials No. Part Name Materials
1 Body Aluminum Alloy 12 Guide Bushing Polyphithalamide
2 Drive Shaft Steel Alloy (Nickel plated) 13 Dynamic Pad Polyphithalamide
3 Crank Steel Alloy (Nickel plated) 14 Piston Guide Polyphithalamide
4 Bushing Acetyl 15 O-ring (Guide) NBR
5 O-Ring NBR 16 O-ring (Cover) NBR
6 Bushing Acetyl 17 Spring SUPG
7 Washer Polyphithalamide 18 Bolt Stainless Steel
8 Washer Polyphithalamide 19 Adjust Bolt Stainless Steel
9 C-Ring Stainless Steel 20 Adjust O-ring NBR
10 Piston Aluminum Alloy 21 Adjust Washer Stainless Steel
11 Piston Pen Steel Alloy (Nickel plated) 22 Adjust Nut Stainless Steel



Torque Table (N-m)

Model Angle 4.5bar 5bar 6bar Spring   Model Angle 4.5bar 5bar 6bar Spring
AS40 0 ˚
45 ˚
90 ˚
5
3
2
6
4
3
8
6
4
4
6
7
AS80 0 ˚
45 ˚
90 ˚
91
52
48
104
63
61
129
88
92
45
50
61
AS50 0 ˚
45 ˚
90 ˚
22
7
3
26
10
6
38
15
14
34
17
36
AS100 0 ˚
45 ˚
90 ˚
117
59
30
143
83
59
197
125
114
135
100
205
AS65 0 ˚
45 ˚
90 ˚
55
27
29
65
33
34
84
45
50
40
22
40
AS140 0 ˚
45 ˚
90 ˚
447
208
171
508
280
273
667
397
563
283
350
422
