A-One Valve

A-One Valve

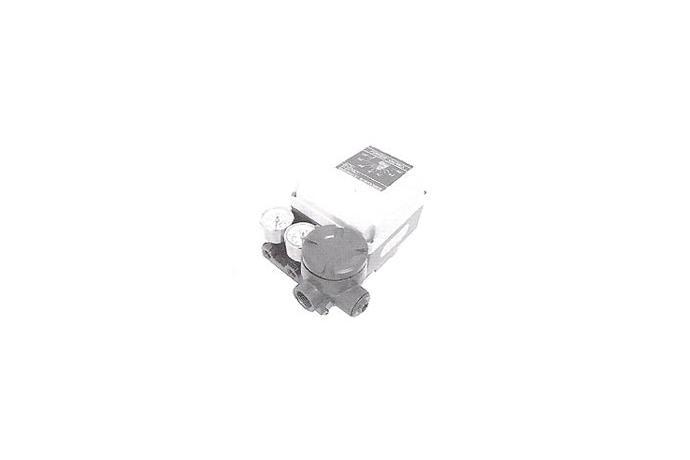

Electro-Pneumatic Positioner

Model

Series

Accessory


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Features

■ Easy maintenance
■ Simple SPAN and ZERO adjustements
■ NAMUR mounting
■ Simple structure for feedback connection
■ Simple conversion to direct acting and reverse acting



Specification

Model EPR(Rotary type) EPL(Linear type)
Enclosure Exmd Ⅱ C(H2) T6, IP66, Exia Ⅱ BT6
Fluids Air
Input Signal 4 ~20mA DC
Split range Application 4~12 or 12~20mA
Voltage Supply Min./Max. 8Vdc / 30Vdc
Linearity < 1.0%
Hysteresis < 0.5%
Sensitivity < 0.5 %
Operating Temperature -20~80℃
Air Piping Connection 1/4" PT
Conduit Connection 1/2" PF
