Automatic valve manufacturer, For Power plant, Energy, Petro chemical, Oil refining, Food, Paper, Shipbuilding, Pharmaceutical field

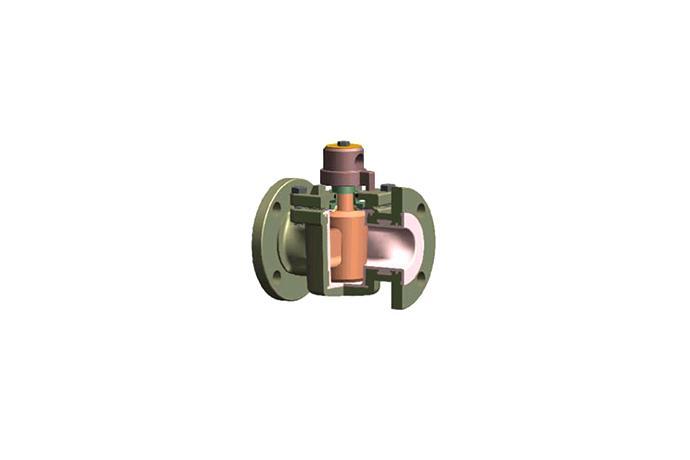

■ Chemical Plants
■ Power Plant-Fossil Fuel
■ Foundries
■ Fats, Oils, Fatty
| Valve Size | 15A ~ 100A, 1/2” ~ 4” |
| Actuator Model | AD Series |
| Actuator Type | Double Acting Cylinder |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 3 ~ 7kgf/㎠ |
| Fluid Temperature | -50 ~ 230°C |
| Rating | JIS10K |
| Body Material | SCPH2,SCS13,SCS14 |
| Lined Material | PFA |
| Accessory | Solenoid Valve, Limit Switch, Air Filter & Regulator, Speed Control, E/P Positioner, Manual Handle |
| Model | Size | A | H | L | D | G | P.C.D | N-M | |
| mm | inch | ||||||||
AD65-15P | 15 | 1/2” | 234 | 202 | 108 | 95 | 51 | 70 | 4-15 |
AD65-20P | 20 | 3/4” | 234 | 210 | 117 | 100 | 56 | 75 | 4-15 |
AD80-25P | 25 | 1” | 276 | 230 | 127 | 125 | 67 | 90 | 4-19 |
AD80-40P | 40 | 1-1/2” | 276 | 253 | 165 | 140 | 81 | 105 | 4-19 |
AD100-50P | 50 | 2” | 334 | 281 | 178 | 155 | 96 | 120 | 4-19 |
AD125-80P | 80 | 3” | 414 | 354 | 203 | 185 | 126 | 150 | 4-19 |
AD140-100P | 100 | 4” | 456 | 384 | 229 | 210 | 151 | 175 | 8-19 |
■ Chemical Plants
■ Power Plant-Fossil Fuel
■ Foundries
■ Fats, Oils, Fatty
| Valve Size | 15A ~ 100A, 1/2” ~ 4” |
| Actuator Model | AS Series |
| Actuator Type | Spring Return |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 3 ~ 7kgf/㎠ |
| Fluid Temperature | -50 ~ 230°C |
| Rating | JIS10K |
| Body Material | SCPH2,SCS13,SCS14 |
| Lined Material | PFA |
| Accessory | Solenoid Valve, Limit Switch, Air Filter & Regulator, Speed Control, E/P Positioner, Manual Handle |
| Model | Size | A | H | L | D | G | P.C.D | N-M | |
| mm | inch | ||||||||
AS80-15P | 15 | 1/2” | 408 | 217 | 108 | 95 | 51 | 70 | 4-15 |
AS80-20P | 20 | 3/4” | 408 | 225 | 117 | 100 | 56 | 75 | 4-15 |
AS100-25P | 25 | 1” | 486 | 234 | 127 | 125 | 67 | 90 | 4-19 |
AS100-40P | 40 | 1-1/2” | 486 | 281 | 165 | 140 | 81 | 105 | 4-19 |
AS125-50P | 50 | 2” | 597 | 311 | 178 | 155 | 96 | 120 | 4-19 |
AS125-80P | 80 | 3” | 897 | 354 | 203 | 185 | 126 | 150 | 4-19 |
AS140-100P | 100 | 4” | 700 | 384 | 229 | 210 | 151 | 175 | 8-19 |
■ Chemical Plants
■ Power Plant-Fossil Fuel
■ Foundries
■ Fats, Oils, Fatty
| Valve Size | 15A ~ 100A, 1/2” ~ 4” |
| Actuator Model | AD Series |
| Actuator Type | Double Acting Cylinder |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 4 ~ 7kgf/㎠ |
| Fluid Temperature | -50 ~ 230°C |
| Rating | JIS20K |
| Body Material | SCPH2,SCS13,SCS14 |
| Lined Material | PFA |
| Accessory | Solenoid Valve, Limit Switch, Air Filter & Regulator, Speed Control, E/P Positioner, Manual Handle |
| Model | Size | A | H | L | D | G | P.C.D | N-M | |
| mm | inch | ||||||||
AD50-15P | 15 | 1/2” | 178 | 161 | 140 | 95 | 51 | 70 | 4-16 |
AD65-20P | 20 | 3/4” | 234 | 164 | 152 | 100 | 56 | 75 | 4-19 |
AD65-25P | 25 | 1” | 234 | 195 | 165 | 125 | 67 | 90 | 4-19 |
AD80-40P | 40 | 1-1/2” | 276 | 253 | 190 | 140 | 81 | 105 | 4-19 |
AD100-50P | 50 | 2” | 334 | 295 | 216 | 155 | 96 | 120 | 4-19 |
AD125-80P | 80 | 3” | 414 | 368 | 283 | 200 | 132 | 160 | 4-23 |
AD160-100P | 100 | 4” | 540 | 475 | 305 | 225 | 160 | 185 | 8-23 |
■ Chemical Plants
■ Power Plant-Fossil Fuel
■ Foundries
■ Fats, Oils, Fatty
| Valve Size | 15A ~ 100A, 1/2” ~ 4” |
| Actuator Model | AS Series |
| Actuator Type | Spring Return Actuator |
| Operating Media | Compressed Dry Air |
| Operating Pressure | 4 ~ 7kgf/㎠ |
| Fluid Temperature | -50 ~ 230°C |
| Rating | JIS20K |
| Body Material | SCPH2,SCS13,SCS14 |
| Lined Material | PFA |
| Accessory | Solenoid Valve, Limit Switch, Air Filter & Regulator, Speed Control, E/P Positioner, Manual Handle |
Part
| Model | Size | A | H | L | D | G | P.C.D | N-M | |
| mm | inch | ||||||||
AS65-15P | 15 | 1/2” | 320 | 200 | 140 | 95 | 51 | 70 | 4-16 |
AS65-20P | 20 | 3/4” | 320 | 205 | 152 | 100 | 56 | 75 | 4-19 |
AS80-25P | 25 | 1” | 408 | 214 | 165 | 125 | 67 | 90 | 4-19 |
AS100-40P | 40 | 1-1/2” | 486 | 280 | 190 | 140 | 81 | 105 | 4-19 |
AS125-50P | 50 | 2” | 597 | 310 | 216 | 155 | 96 | 120 | 4-19 |
AS160-80P | 80 | 3” | 790 | 410 | 283 | 200 | 132 | 160 | 4-23 |
AS200-100P | 100 | 4” | 960 | 520 | 305 | 225 | 160 | 185 | 8-23 |
