Model Name

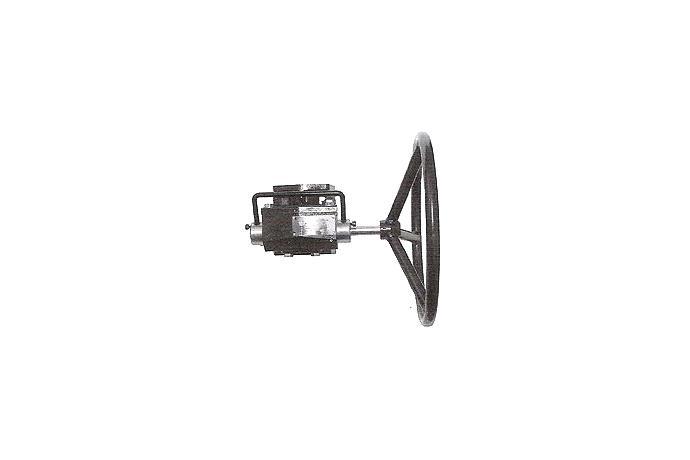

ATG Series
Size
-
Weight
-
Product Details
Features
■ Direct Mounting
■ High Power
Specification
| Model No. | ATG 050 | ATG 060 | ATG 080 | |
| MAX. OUTPUT TORQUE | 500Nm | 1000Nm | 2000Nm | |
| Pneumatic Actutormounting Flange(ISO5211) | F07 / F10 | F10 / F12 | F12(F14) | |
| Reducion Ratio | 40:1 | 45:1 | 48:1 | |
| Mechnical Advantage | 12 | 13.5 | 14.4 | |
| Number Of Turns 90 | 10 TURN | 11.3 TURN | 12 TURN | |
| Available Max. Valve Shaft |
Max. Diameter | 22 | 32 | 40 |
| Max. Square | 17 | 27 | 36 | |
| Max. Two Flat | 17 | 27 | 36 | |
| Handwheel Diameter | 300 | 450 | 550 | |
| Valve Mounting Flange(IS0 5211) | F 07 / F 10 | F 10 / F 12 | F 12(F14) | |
| Weight | 4.6Kg | 6.2Kg | 8.5Kg | |
| Application For Pneumatic Actuator | AD50/65/80 AS50/65/80 | AS100/125 AS100/125 | AD140/160 AS140 | |
※ (Option)
Part
| DIM/ Model |
A | B | C | ΦD | E | F | G | H | I | ΦJ | ΦK | Drive BusH | Bore size | Valve Mounting | Pnematic Actuator | |||||||
| ΦL | M | ΦO | P | Q | F1/2 | BCD 1/2 |
4-ΦD 1/2 |
F3/4 | BCD 3/4 |
4-M1/2 | ||||||||||||
| ATG 050 | 300 | 193 | 115 | 300 | 213 | 87 | 65 | 57 | 35 | 55 | 102 | 102 | 102 | 102 | 102 | 102 | F07 F10 |
F07 F10 |
4-Φ9 4-Φ11 |
F07 F10 |
F07 F10 |
4-M1/2 4-M10 |
| ATG 060 | 370 | 229 | 135 | 450 | 272 | 98 | 75 | 71 | 45 | 85 | 125 | 125 | 125 | 125 | 125 | 125 | F10 F12 |
F10 F12 |
4-Φ11 4-Φ13 |
F10 F12 |
F10 F12 |
4-M10 4-M12 |
| ATG 080 | 454 | 267 | 160 | 550 | 342 | 112 | 90 | 88 | 50 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | F12 F14 |
F12 F14 |
4-Φ13 4-Φ17 |
F12 F17 |
F12 F14 |
4-M12 4-M16 |
