Accelerate your research

The Xeuss 3.0 is used for many applications.

Select your application

Size, structure, shape, orientation...

Characterize the nanostructure of soft-matter and nanomaterials using SAXS/WAXS and USAXS technique in transmission or grazing incidence mode.

• Particle size distribution ranging from few nanometers to more than 350 nm in diameter
• Crystallization rates and lamellar structure of semicrystalline polymers
• Size and shape analysis of surfactants or proteins in solutions
• Organization and orientation of nanomaterials at atomic or nanoscale, in bulk phases or at surfaces
• Phase segregation studies of alloys
• In situ studies of nanostructure transitions

Select the characterization you are interested in

Maximum flexibility

Provide structural tools to a large community of users with full remote operation capability and access to a unique range of length-scales.

Advanced nanomaterials development and design require characterization over a large range of length scales. The Xeuss 3.0 offers such measuring capability over up to 5 orders in magnitude in q (wave vector) through entirely motorized change of configurations. Any trained user can thus operate the system remotely over its complete measurement range for a given sample or batch of samples.

Automatic change of measuring settings include:

• Q-Xoom change of measurement resolution through motorized translation of detector
• Sequential SAXS /USAXS measurement with Bonse-Hart USAXS module
• Change of energy radiation, up to 3 energies
• Movable WAXS detector for out of equilibrium in situ SWAXS studies
• InXight X-ray imaging module

Ultimate performance

The Xeuss 3.0 offers a maximum flexibility of measurement configurations to get the best possible data quality on any type of sample.

In particular, the following key features enable the user to optimize experiments or results:

• High flux settings adapted for fast kinetics embedded in a low background camera
• Largest surface of detection moveable all the way from WAXS to long distance SAXS to optimize resolution and signal-to-noise
• Long distance SAXS settings for measuring large characteristic dimensions (> 300 nm)
• Optional USAXS module to characterize  large structures ( > 4 µm)

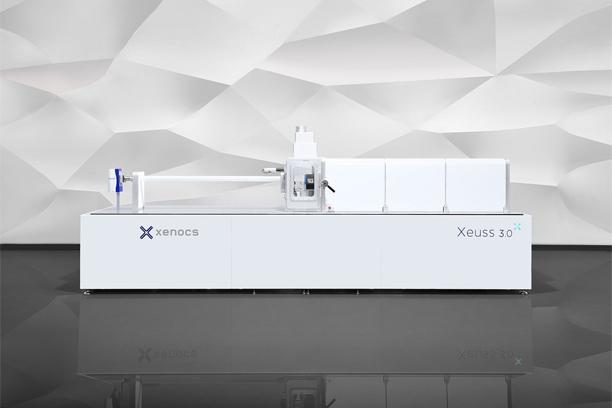

Xeuss 3.0 shown with Q-Xoom transparency to illustrate the moving detector.

Plenty of space for sample environment

With its large chamber and concept ensuring stationary sample during measurement, the Xeuss 3.0 is the perfect X-ray scattering platform instrument for now and the future.

Advanced materials research and characterization could require integration of specific or customized sample environments.
Xeuss 3.0 is perfectly adapted for such new projects thanks to its state of the art beamline concept.
It provides:

• Large vacuum chamber with stationary sample during measurement (continuous on-axis sample viewing, smart integration of customized sample environments)
• Sample stage with long translations for sample mapping and batch measurements
• Broad range of standard sample environments with holder recognition
