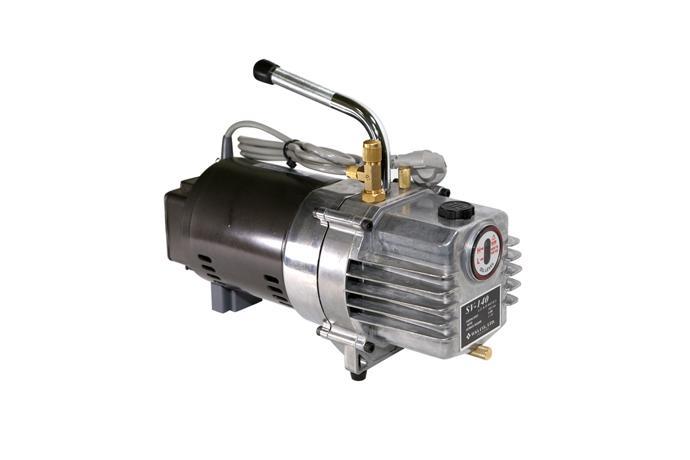

SV-140
SV-140 has been developed to perform the vacuum state before coolant replacement of cars and general air conditioner. Small sized, lightweight and easy to carry. Simple internal structure makes repairs and maintenance easy.
펌핑속도 | 140L/min |
도달진공 | ≤ 5X10-3 Torr |
최대출력 | 400W(0.5hp) |
Specifications
Pumping Speed | 140ℓ/min | |
Ultimate Pressure | Gas Ballast Open | 5X10 -2 Torr ( 6.7 Pa ) |
Gas Ballast Closed | 5X10 -3 Torr ( 6.7 X 10 -1 Pa) | |
Power Input | Standard | 220VAC 1Ф 50/60Hz |
Option I | 110VAC 1Ф 50/60Hz | |
Option II | Customer’s Request (Voltage, Frequency) | |
Full load Power | 0.4kW (0.5 HP) | |
Motor Speed | 1,700 rpm | |
Inlet | Standard | 1/4” and 3/8” T-type |
Option I | 1/4” and 3/8” Cross type | |
Option II | 3/8” Stand type | |
Weight | 14.7kg | |
Oil Capacity | 600cc (0.6ℓ) | |
Ambient Operation Temp. | 7~40°C / 45~104°F | |
Overall Dimension(mm) | 160x397x297 (unit : mm) | |
Dimensions
Pumping Curve
