기본사양

Power :    3 - 30kW

Voltage :    24 - 400V

Output Torque :    600 - 1,600Nm

Gear Ratios :    1:3 - 1:80





■ APPLICATION

- Benevelli electric powertrains are ideal for a wide ragne of vehicle related application such in Agriculture, AGV, Amusement, Cleaning, Construction, eMobility, Off-Highway and Material Handling market.

- TX1 and TX2 are the most complete scalable drivetrain system for electric vehicles. The compact gearboxes are designed including differential, rigid axle and motor in a all-in-one solution for a convenient and easy vehicles installation.





■ FEATURES

- Extensive modularity

- 95% transaxle efficiency and 94% maximum motor efficiency

- Come with various types of wheel hub or with mechanical-hydraulic drum brakes

- Metallic parts subjected to chromiting® zinc coating to withstand corrosive agents

- Ground gears for minimum noise

- Static load up to 1,600kg

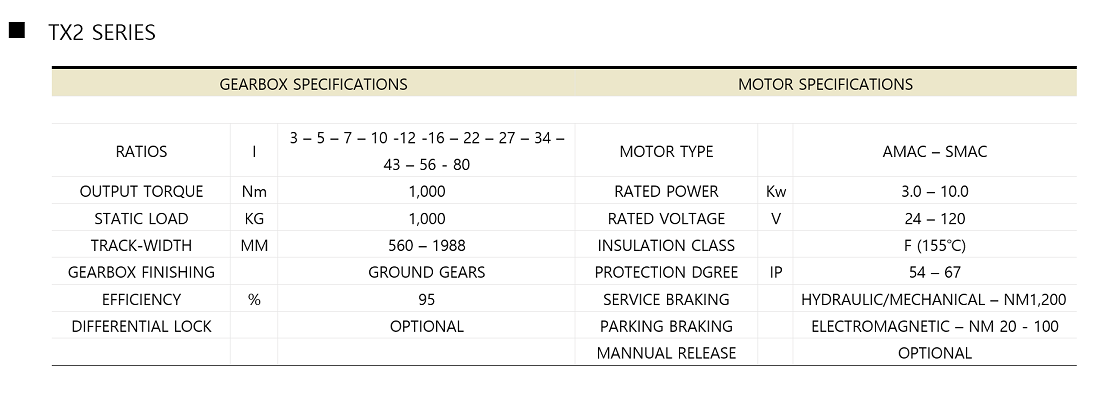

■ SPECIFICATIONS
