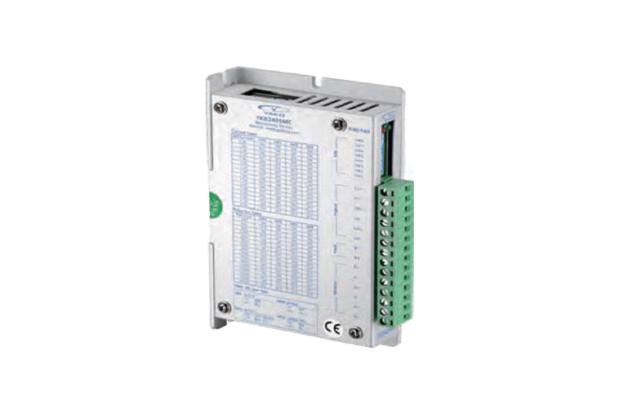

기본사양

- Maximum Output Current    4.5A

- Maximum Input Voltage    50VDC

- Maximum Number of Subdivision    40,000





Features

• 32-bit DSP control, low noise and superior vibration performance

• 16 constant torque microstep setting, up to 200 microsteps

• Smooth and accurate current control, effectively reduce motor heating

• The highest pulse response frequency is 400Kpps

• When the pulse stops over 300ms, the motor current is halved

• Excellent smoothness in low frequency microsteps

• Optically isolated differential signal input, strong anti-interference ability

• Drive current is adjustable below 4.5A • Voltage input range: DC20~50V

• With over voltage, under voltage etc. fault protection

• Small size, volume 136*82*25 (mm3), weight 0.35kg

• Suitable for 42~86mm(NEMA17~34) 2 phase open-loop stepper motors.

Application : Mainly used in CNC machine tools, engraving machines, packaging equipment, hydraulic machinery, laser cutting machines, textile equipment, ceramic equipment, electronic equipment constant speed applications
