2MP 60fps X4

모델명

시리즈

NDAA Compliant IP Camera


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


02-6738-6000

제품 상세 설명

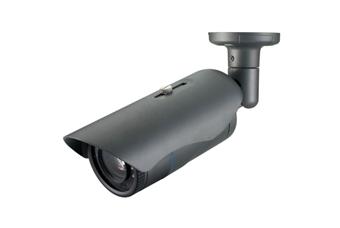

TN-B3204U6R

- Sony 1/2” CMOS

- H.265/H.264/MJPEG

- Max 60FPS @ 1920 x 1080

- Built-in X4 Motorized Lens

- X10 Digital Zoom

- SRT (Secure Reliable Transport)

- RTSP/RTMP/MPEG-TS

- ONVIF (Profile S, Profile G)

- True WDR

- Hybrid CBR






Specifications

Basic Specifications

Image Sensor

1/2” Sony CMOS Sensor

Lens type

Auto DC Iris, Zoom lens, IR cut filter

Lens mount

Board mount

Minimum illumination

0 Lux (IR LED on), Color : 0.015 Lux (1/30, 50IRE)

Lens (wide to tele)

4x optical zoom ; f = 3.5 ~ 14.0mm

Shutter Speed

1/1 to 1/100000

Maximum Aperture Ratio

F1.53

Angle of View

Horizontal : 103.4°(wide) ~ 35.5°(tele) Vertical : 67°(wide) ~ 20.1°(tele)

Privacy masking

4 regions

Flip mode

Horizontal, Vertical

Image enhancement

AF, AWB, AE, NR, TDN, DSS, BLC, GAMMA, DPC, DEFOG, WDR

IR LED

850nm, 4pcs, 30m


Video



Compression

H.265/H.264/MJPEG

Frame rate

Max 60fps @ 1920x1080

Bitrate

Primary : 32Kbps ~ 16Mbps, Secondary : 32Kbps ~ 4Mbps

Resolution

320x240 ~ 1920x1080

Streaming

Quad Streaming Primary : H.265/H.264, Secondary x 3 : H.265/H.264/MJPEG

Burn-in OSD

Multi-lingual


Audio



Compression

G.711

Sampling rate

G.711 : 8 KHz

Bitrate

G.711 : 64Kbps

Streaming

Full-duplex

Input/Output

1 x Line-In (mono), 1 x Line-Out (mono)


Network



Protocol

IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration,

NTP, SRT, MPEG-TS, RTP, RTSP, RTMP, DDNS

Security

Password protection, IP address filtering, HTTPS encryption

API

Truen protocol/SDK, ONVIF, PSIA, MPEG-TS

Interface

Ethernet 10/100/1000 base-T (RJ-45)


Event / Alarm



Event sources

Motion, Sensor input, Client disconnection, Intrusion, Line crossing, Tampering,

Abnormal video detection, Face detection, Sound detection, User defined event

Event actions

Notification(E-mail), FTP, PTZ preset, Alarm control, Recording

External devices

1 x Sensor-In (dry contact, NO/NC)

1 x Alarm-Out (dry contact, NO)

1 x RS-485 port : PTZ control etc.


General



Power Supply

Min DC12V/1.5A, PoE(Power over Ethernet) : 802.3af

Power Consumption

DC12V/PoE : Max 12W

Operating Temperature

-10°C ~ 50°C ( 14°F ~ 122°F )

Storage Temperature

-10°C ~ 50°C ( 14°F ~ 122°F )

Operating Humidity

20% ~ 80% RH

Storage Humidity

20% ~ 80% RH

Edge Storage

Micro SD/SDHC/SDXC slot (Max 512GB)

Dimensions (W x H x D)

Ø120.5 x 391.5(L) [mm]

Weight

1,320g
