Support Interface : RS232 (USB is available with an optional cable)

No of Digital Input : 1

No of Digital output : 2

Input Power condition : 5V, 1.8 A as Max

Antenna : 1 Internal PCB Antenna is installed in the case

1 SMA connector is ready for an external antenna



Support Region : Korea(908.5-914 MHz), NA, EU and others

Support Protocol : Class 1 Generation 2 (ISO18000-6C)

Reading distance : 3 – 7m depend on antenna and tag type

Max RF Output : 30dBm (1W)

Operating temperature : -20C to 60C

Storage temperature : -45C to 85C

Max Tag Read Rate : 170 tags per second

Dimension : 65(85)mm x 125mm x 28mm



Composition

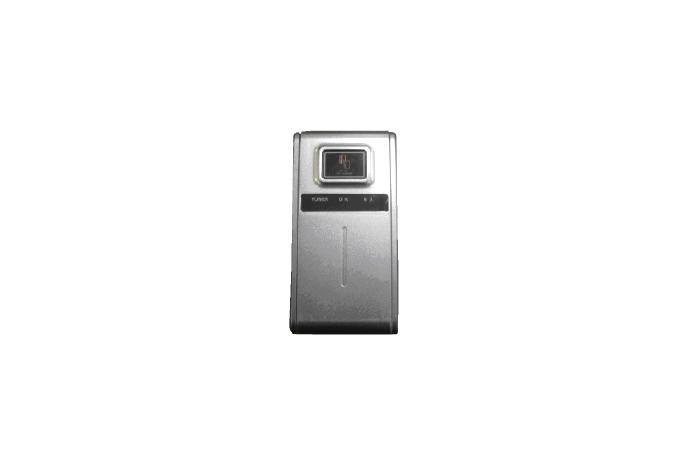

1.       1pc of M5e Fixed Reader (Including an internal PCB antenna)

2.       1pc of RS232 Interface cable.

3.       1pc of 5.0V (2.0A) power supply

4.       1pc of CD (test program, developer guide, firmware, manual)

5.       Some Gen 2 Tags (including 1pc of metal tag)

6.       Option : External Antenna(200mm x 200m x 25mm), USB Cable
