PERFORMANCE
Light source : RED LED 660nm
Scan rate : 50~100 Scans per Second
Resolution : 4mil (0.1mm)
Scan angle : 45°~ 85°
Depth of field : 0~2mm
Symbologies : UPC/EAN, Code39, Code128, Code93, Codabar, Interleaved2of5, standard2of5
                    matrix2of5, industrial 2of5, China postage, Code32, ETC
Interface : TTL

MECHANICAL

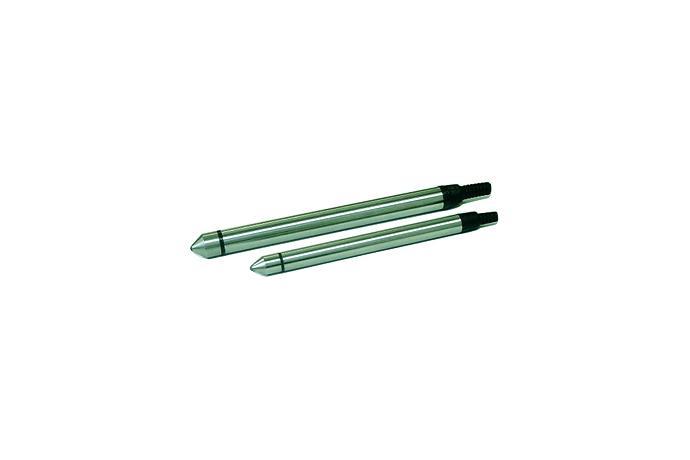

Dimensions : TSK-100 : 13mm Ⅹ 140mm,
 　               TSK-100S : 10mm Ⅹ 120mm
Weight : TSK-100 : 45g,
          　TSK-100S : 30g
Body Material : STAINLESS STEEL
Tip : Sapphire

ELECTRICAL
Power Supply : 5VDC ± 5%
Current Active : 15mA

DURABILITY
Cable : 100,000 Bending at 90 degree with 500g weight
Shock Resistance : t1 meter drop onto concrete surface

ENVIRONMENTAL
Temperature : Operating : 0 ~ 50°C, Storage : -10 ~ 60°C
Humidity : Operating : 10% ~ 80%, Storage : 10% ~ 95%
Ambient light : White light : 3000 lux, Fluorescent light : 3000 lux
