Depth of Field : 25mm - 279mm (1.0” - 11.0”) for 0.33mm (13mil) bar code at default setting
Width of Field : 30mm (1.2”) @ 25mm (1.0") ; 150mm (5.9”) @ 280.9mm (11.0”)
Scan Speed : 1650 scan lines/sec, omnidirectional; 80 scan lines/sec, single line

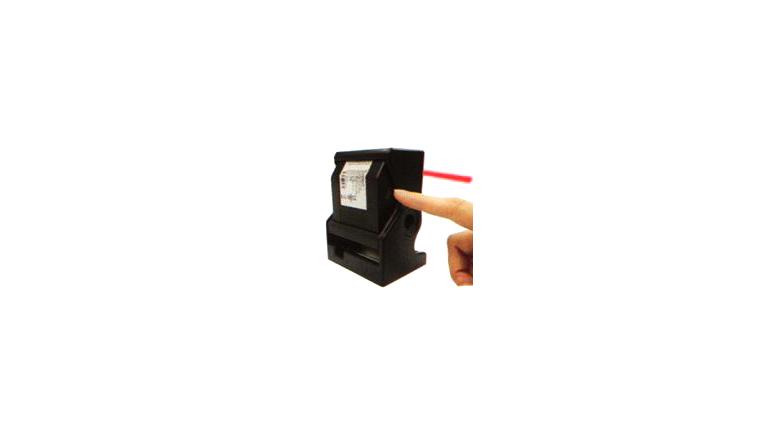

Scan Patter : 5 fields of 4 parallel lines, omnidirectional; or button activated single lin
Minimum Bar Width : 0.127mm (5.0mil)
Dimensions : 63.5mm(D) x 79mm(W)x 105mm(H)
System Interfaces : PC Keyboard Wedge, RS-232, OCIA, Laser Emulation, IBM 468x/469x,
Stand Alone Keyboard, USB (low speed and full speed)
Light Source : Visible Laser Diode 650nm
Weight : 170g (6.0oz)
Indicators : Blue = laser on, ready to scan ; White = good read
