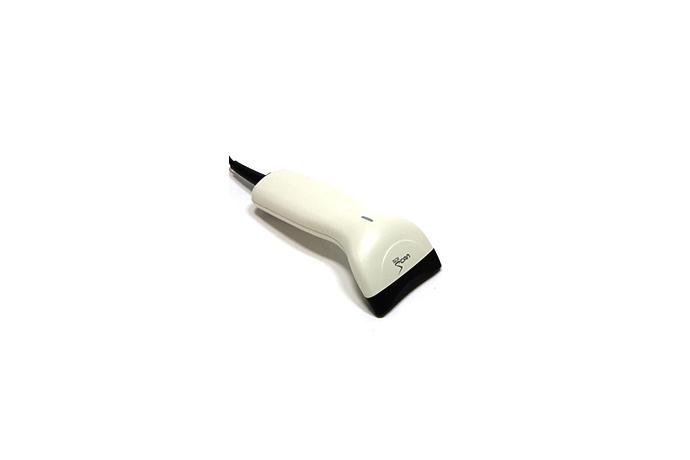

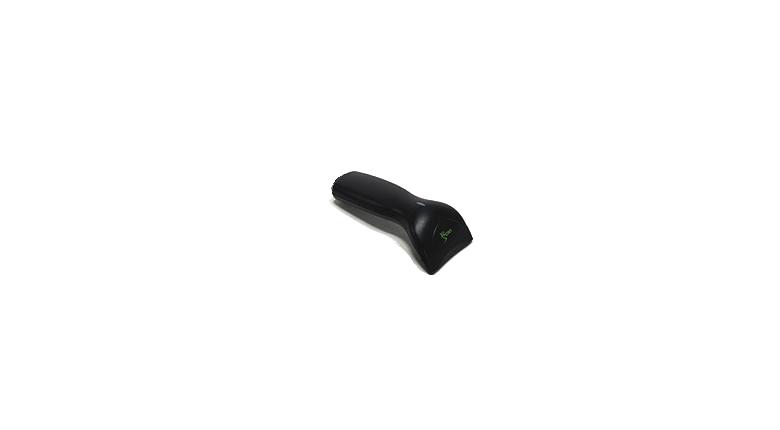

CCD 스캐너

모델명

시리즈

바코드스캐너


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


02-890-5440

제품 상세 설명

PERFORMANCE
CPU : 32Bit
Readable angle : Forward: 45°, Backward: 45°
Scan rate : 300 Scans per Second
Resolution : 4mil (0.1mm)
Photo Sensor : 2500 Pixel Linear CCD
Illumination : 660nm Visible Red LEDS
Field Width : 150mm (15mil)
Depth of field : 0~400mm
Symbologies : UPC/EAN/JAN, Code39, Interleaved 2 of 5 Standard 2 of 5, Matrix 2 of 5,
                      Industrial 2 of 5, Codabar, Code128, MSI, Plessey, Code93, GS1 DATABAR (ALL) Code 3 of 5 (Korean Postage)
Interface : USB, IBM PC XT/AT/PS2 Keyboard wedge, Standard RS-232C, TTL serial, Wand emulation

MECHANICAL
Dimensions : 75mm X 51mm X 170mm
Weight : 120g
Cable : 2m Straight Fixed to Scanner
Body Material : ABS Plastic

ELECTRICAL
Power Supply : 5VDC ± 10%
Current Active : K/W : 100mA ~ 140mA / USB : 145mA ~ 170mA / RS-232 : 100mA ~ 130mA

DURABILITY
Trigger Switch : 1 million Actuations
Cable : 100,000 Bending at 90 degree with 500g weight
Shock Resistance : 1 meter drop onto Concrete Surface

ENVIRONMENTAL
Temperature : Operating : 0 ~ 50°C, Storage : -10 ~ 60°C
Humidity : Operating : 10% ~ 80%, Storage : 10% ~ 95%
Mechanical Shock : Functional after 1.5m (5ft) drops
ESD Protection : Functional after 15kV discharge
