제품 상세 설명
Product Description
Simple and Cost-effective, but Smart
Wisdom-E is designed to facilitate a wide range of procedures through two detectors with manual overhead tube crane for clinics or hospitals.
Its compact and clever design delivers high-performance as well as cost-effective
operation through ease-of-use which fully meet the demands on quality and versatility with affordable price.

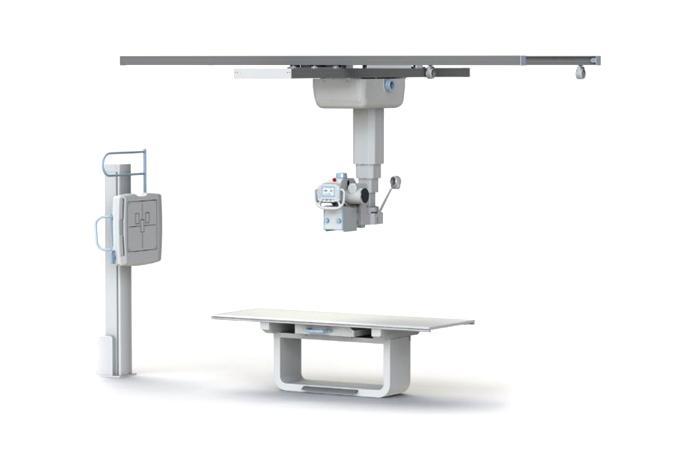

Configuration
Overhead Tube Crane
Wall Bucky Stand
4-Way or 6-Way Patient Table
| Ceiling-Mounted Tube Support(Manual) | |
|---|---|
| Display with color LCD screen on the tube housing | |
| Workflow is enhanced through direct manipulation of examination parameters listed below | |
|
- SID (Source-image distance) measurement |
|
|
- Display angle of tube rotation |
|
| Tube Travel Range |
- Vertical travel range: 150cm - Rotation range around the vertical axis : - Rotation range around the horizontal axis : |
| Horizontal Travel Range |
Longitudinal: 332 cm with 4 m trolley |
| Power Requirement |
UL: 120 VAC, 50/60 Hz, 500 VA CE: 220 ~ 240 VAC, 50/60 Hz, 500 VA |
| 4-Way Patient Table (Manual) | |
|---|---|
| The table can be equipped with cassettes or a mobile flat detector for optimal coverage and high patient throughput | |
| Tabletop Travel Range | Longitudinal: ±41 cm Transverse: ±11 cm |
| Detector Travel Range |
42 cm |
| Max. Patient Weight |
300 kg |
| Kick Switch |
For float adjustment |
| Power Requirement |
100 ~ 240 VAC, 50/60 Hz, 3A |
| Bucky Wall Stand (Manual) | |
|---|---|
| The stand can be equipped with cassettes or a mobile flat detector for optimal coverage and high patient throughput | |
| Manual Movement | Vertical travel with electric magnet brake |
| Vertical Travel Range (central beam- floor) | Max. : 188 cm Min. : 40 cm |
| Power Requirement | 24 VDC, 1A |
-Specifications subject to change without notice.
