Product Description

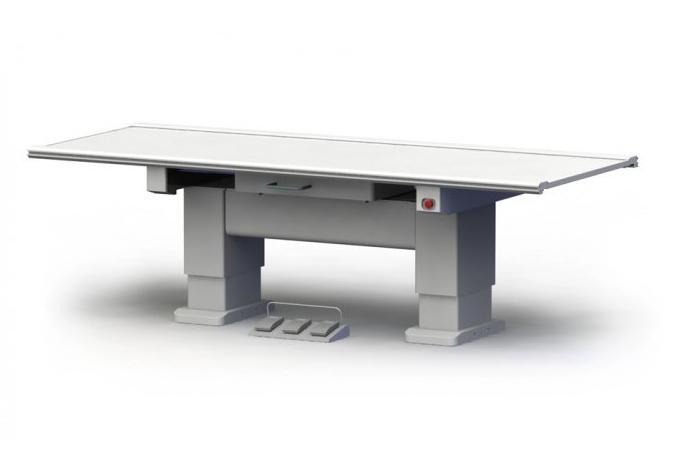

The Elevating Radiographic Table is designed for general purpose radiography and is ideally suited for modern hospitals, urgent care centers, clinics and private practices.
Built to demanding hospital-quality duty standards, the Elevating Radiographic Table will provide years of trouble-free operation.
Effortless patient positioning is achieved with the four-way float top table and a variable table top height that provides smooth, quick up and down motion. The ease of positioning elderly, non-ambulatory or casted patients results in substantially increased patient throughput.
| Specifications |
data |
| Dimensions |
2200 x 806 x 545mm (86.6 in. x 31.7 in. x 21.5 in.) |
| Power Requirement |
120VAC or 200~240VAC,
50/60Hz, 1000VA
|
| Floating Table Top |
Electric magnet brake with a wireless foot switch |
| Patient Load |
250 kgs |
| Strokes |
1) Transverse Stroke: ±110mm (±4.3 in.)
2) Longitudinal Stroke: ±430mm (±16.9 in.)
3) Height Stroke: 545~845 (21.4 ~ 33.3 in.)
|
-Specifications subject to change without notice.
