삼일엘텍
Control Panel
모델명
시리즈
제어반
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명

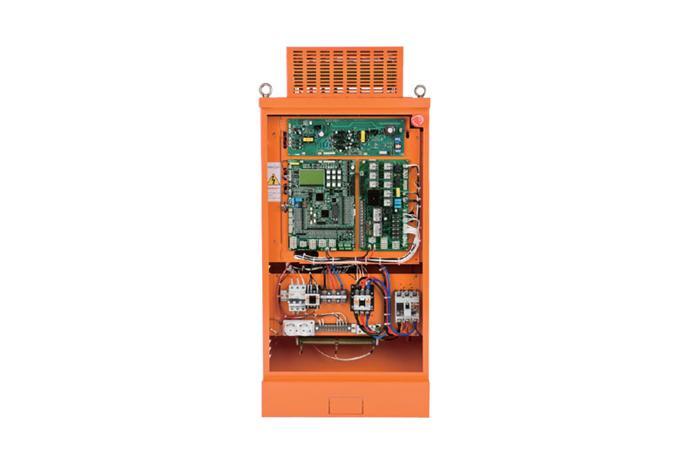

SICON-4000LZi is a leading-edge elevator control panel with highly enhanced features by using advanced sofrware programming technology and high speed dual DSP. Inverter part to drive a motor and main control part are integrated into one board, having built in operator so as to be more compact consequently. It is possible to drive parallel operation, if 2car's main board parameter value will be changed. It is also the smallest, lightest, and most compact control panel.
Specification
Power | 3-Phase 200v / 380v / 415v / 440v |
Frequency | 50/60Hz |
Nos. of stop | 30 Stops |
Speed | 45~150m/min |
Control Type | Rope type (Inverter) |
Speed Reduction | Encoder (500~8192Pluse) |
Display | Dot Matrix. / LCD |
Group | 2 Car (parallel operation) |
Usage | Passenger |
Size | 510 x 1220 x 350 |
Inverter rated current
Kw Power | 5.5Kw | 7.5 | 11Kw | 15Kw | 22Kw |
200V | 27A | 37.3A | 49.5A | 73A | 93A |
380V | 17A | 17A | 24.7A | 34A | 47A |
Feature
- Compatible with any synchronous motors by simply changing software.
- Built in Operator
- Built in various counter function
- Compact size model
