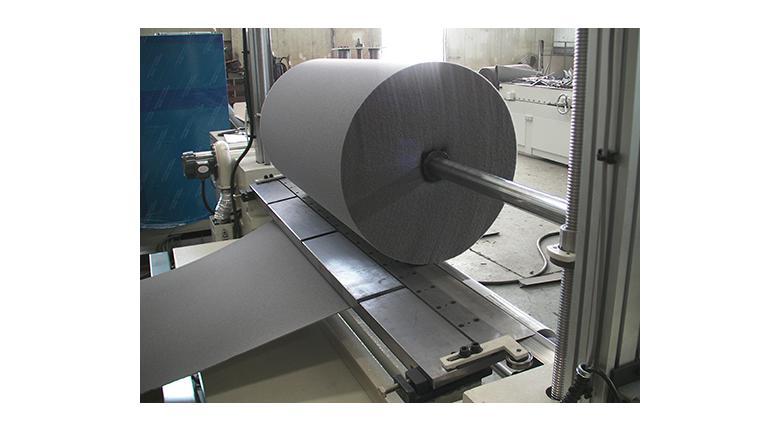

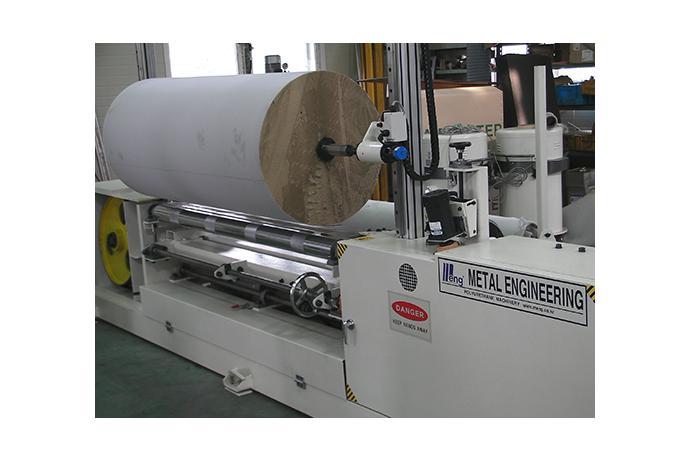

This machine requires cylindrical Foam Block with hole in the center of the foam
Put the shaft in the middle of the hole to mount it on the machine
Automatic winder rolls the cut foam.
This machine is suitable for industry-LCD, Mobile, Motors and Shoes.
Because it has high accuracy rate Changing of the thickness of foam is very easy
on the operating screen
The machine is efficient for small investment
because small scale foaming machine can supply the material and it need small space for installation
| working width |
1600mm,2200mm
|
|
working diameter
|
max’ Ø1800
|
|
bane knife
|
0.6T x 60 W
|
|
cutting speed
|
MAX’ 50M/min
|
|
error range
|
±0.1
|
|
working thickness
|
0.8~12mm
|
