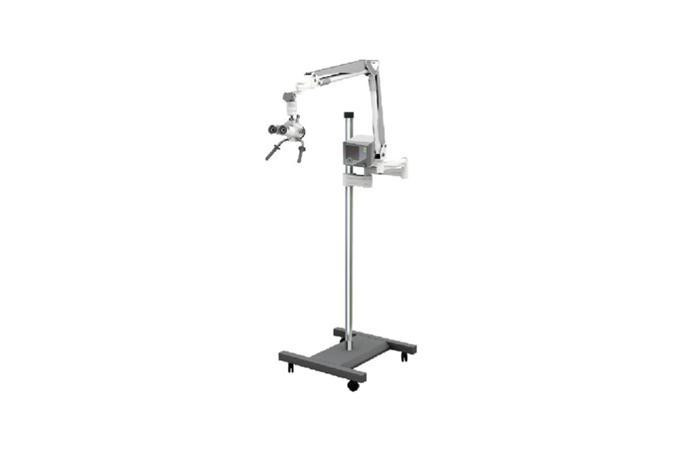

Micro-100 Microscope
이비인후과의 영역의 정확한 진단을 위하여 개발된 장치로 육안으로 관찰하기 힘든 환부 부위를 확대 관찰하여 진료 및 수술, 처치를 돋는 기구입니다.
제품사양
| Focus length of objective | F=250mm |
| Magnification | X2 , X4, X7 |
| Working distance | 190mm |
| Bulb | 12V / 100W |
| TYPE | Type Stand, Unit attach type |
양안대안렌즈 파라미터
| Inclined binocular tubes | 45▲ |
| Diopter adjustment range | ÷6D |
| Pupil distance range | 50mm// 70m |
| Height of eyecups | 18mm |
조명 파라미터
| 6 + 0 Coaxial illumination Maximum intensity | 30000Lx or up |
위치 조정 파라미터
| Maximum stretching radius of arm | 870mm |
| Vertical movement range (from floor to front surface of big objective) |
700//1100mm |
| Range of fine focusing adjustment | 30mm |
전기 파라미터
| Input voltage | AC 110/220V 50㎐ |
| Input power | 120VA |
| Bulb | 12V/100W |
| Voltage | 220V |
| Frequency | 60Hz |
| Weight | 40Kg |
| Dimension (W x D x H) | (W)180 ×(D)60 ×(H)170mm |
