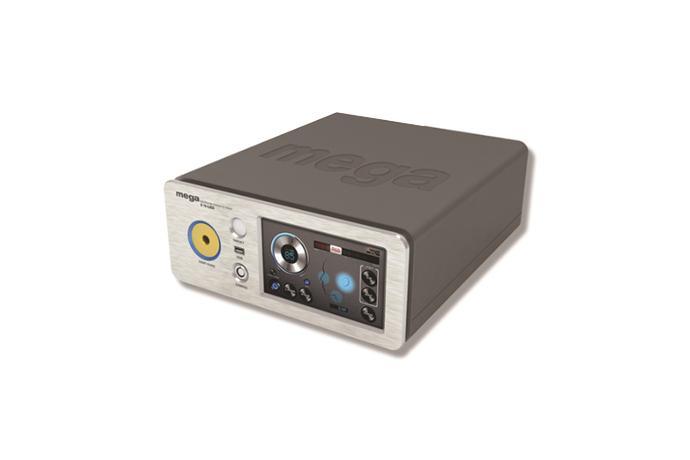

NET-260L ENT Visual System, LED
이비인후과의 정확한 진단 및 처치를 위하여 사용되는 Visual System입니다.
제품 사양
| Type of CCD sensor | 1/3” SONY SUPER HAD CCD |
| Sensitivity | 2250mV |
| ADC/DAC | 10 Bits |
| Resolution | 520TV Line |
| Pixels | 410,000 |
| AWB (Auto White Balance) | Auto adjustment by OPTIC SENSOR or AWB BUTTON |
| MWB (Manual White Balance) | Red<-> Blue Manual (20 staged) |
| IRIS | 20 stages |
| Brightness | 20 stages |
| Visibility | 5 stages (0 > 20 > 40 > 60 > 80 > 100) |
| AGC | 3stages (off / on / up) |
| ENT button | Color/Brightness/Visibility are automatically and ENT optimally fitted to each ENT inspection |
| System boot time | Below 10 sec. |
| Video output | Composite(NTSC, PAL), DVI, RGB |
| Image saving | USB memory(JEPG,AVI) |
| PC connection | Ethernet (10/100Mbps) |
| PC specification | Pentium 4 |
| Input voltage | AC 220V, 50/60Hz |
| Electricity consumption | 150W |
| Dimension (WxLxH) | 328 x 365 x 141mm |
| Light source | LED 100W(5V, 20A) |
| Brightness (lx) | Avg. 200,000 lux |
| Lamp life time | Avg. 20,000hrs |
| Brightness adjustment | Adjustable by aperture of camera and LED brightness adjustable |
| LCD Monitor | 17″, 19″ LCD monitor |
기본 구성품
- Software CD
- Video cable + BNC gender
- Power cable
- Foot switch
- DIV to D-sub gender
- LAN cable
- Light guide
- CCD Camera
AWB, USB Port
7" Touch Panel
