제품 상세 정보

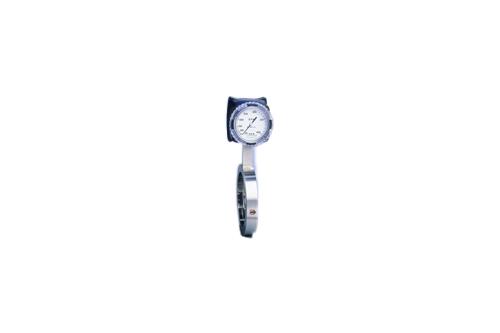

The 8000 series liquid flow meter is a wafer style connection can be mounted between ANSI standard 150# or 300# class flanges (or international equivalent) JIS, DIN, and AS. The flow meters can be ordered in Bronze, SST and Monel in pipe sizes ranging from 1/2" to 8" and flow rates from 2 to 3000 GPM.
Specification
|
|
Standard |
Optional |
|
Accuracy |
± 3% F.S. |
|
|
Repeatability |
± 1% F.S. |
|
|
Pressure Max. |
180 psig (12.6 kg/㎠) |
400 psig (28.1 kg/㎠) |
|
Pressure Min. |
10 psig (0.67 kg/㎠) |
10 psig (0.67 kg/㎠) |
|
Temp. Max. |
212 ºF (100ºC) |
350 ºF (177ºC) |
|
Temp. Min. |
-30 ºF (-34ºC) |
-80 ºC (-62ºC) |
Ordering Information
| Step 1 - Select a Product Category (i.e. Flowmenters, Flow Transmitters, etc.) and Product (i.e. Liquid, Gas, etc.) |
||||||||||
| Step 2 - Select the item # which defines the (a) body size, (b) connection type and (c) material of construction and press the "Request Information" button to continue to Step 3. |
||||||||||
| A) Body Size - Pipe size at the meter inlet. | ||||||||||
| B) Connection Type (Series) -- | ||||||||||
| 7 - Threaded units with FNPT connection Standard. FBSP threads Bronze and Monel only. | ||||||||||
| 8 - Wafer units standard 150 # and 300 # class flanges (or international equivalent). | ||||||||||
| C) Material - | ||||||||||
| 1 = Bronze 2 = Monel 3 = Stainless Steel | ||||||||||
| Step 3 - Select (d) flow direction, (e) flow range, (f) Options (Required Fidlds*). Complete the information section name, address, phone, email, etc. and submit for request for quote or for additional product information. |
||||||||||
| D) Flow Direction - Select L, R, VUL, VUR, VDL, VDR. | ||||||||||
| E) Flow Range (full scale) - Select from available flow rate list specific to each item #. | ||||||||||
| F) Options (if required) - Select from table of options specific to each item #. | ||||||||||
| Note : Not all options can be combined, consult the factory for details. Example : See complete model number below. |
||||||||||
Product Category - Flow Meters for Liquids and Gases (Gas)
