Completely electronic, Gems™ Liquid Level Transmitters provide reliable and durable remote tank gauging. A wide variety of material combinations provide compatibility for most liquid media. Gems XM- & XT-800 Series provide solutions for most small to mid-size tanks in both process and OEM applications; for deeper tanks (to 18 feet) look to the Gems 36000 and 66000 Series.

Gems experienced engineering and sales staff can provide customized solutions for applications not satisfied by the standard transmitters shown in this catalog. Do not hesitate to contact Gems if you require a configuration not shown here.

XM/XT-800 Series

These compact transmitters feature the rugged durability of stainless steel or brass construction. The XM-800 series provides analog output, and can be combined with Gems™ Digital Bargraph Display and Level Cube Receivers.

Completely electronic, Gems Liquid Level Transmitters provide reliable and durable remote tank gauging. A wide variety of material combinations provide compatibility for most small to mid-size tanks in both process and OEM applications; for deeper tanks up to 18 feet (5.48 m) look to Gems 36000 and 66000 Series. Gems experienced engineering and sales staff can provide customized solutions for applications not satisfied by the standard transmitters shown in this catalog. Do not hesitate to contact Gems if you require a configuration not shown here.

Now available with Stem Mounted 4-20mA Signal Conditioner.

Stainless or Brass Construction 1/4-Inch (6 mm) Resolution Lengths to 144 Inches (3658 mm) OEM Configurations Available Analog Output

UCL-510

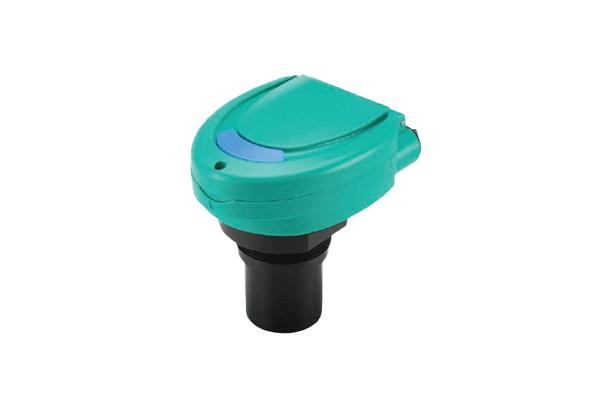

The UCL-510 offers an innovative, non-contact ultrasonic level sensor with no-moving-parts built for challenging fluid measurement. This accurate and reliable sensor is built for general purpose, small tank applications 49.2" (1250 mm) or less and offers switch, controller and transmitter capabilities in one multi-function transmitter. The UCL-510 is suited for corrosive and dirty applications and is virtually maintenance free and reduces tank system hardware. The UCL-510 combines 4 relays, 4-20mA output and pump/valve control in one small sensor. The UCL-510 offers a total solution for fluid handling and automation.

49-Inch (1245 mm) Range. 1" NPT Mounting Non-Contact for Corrosive, Sticky or Dirty Media Provides Full Pump or Valve Control Applications Water and Waste Water Food and Beverage Control Automation Acids, Inks, Paints Chemical Feed Slurries

UCL-520

The UCL-520 is a two-wire ultrasonic transmitter that provides non-contact level measurement up to 26.2' (7.98 m) and is built for challenging ultra pure, corrosive or waste liquids. The highly accurate sensor is easy to install in applications with limited mounting options and space. The UCL-520 is push button calibrated and is broadly selected for atmospheric bulk storage, day tank and waste sump applications.

To 26-Feet (7.92 m) Range 2" NPT Mounting Setup is Fast and Easy 6-Segment LCD Display Applications Water and Waste Water Petrochemical Health Care Mining Cleaning HVAC Chemical Semiconductor Agriculture Electric Power Water Parks/Swimming Pools
