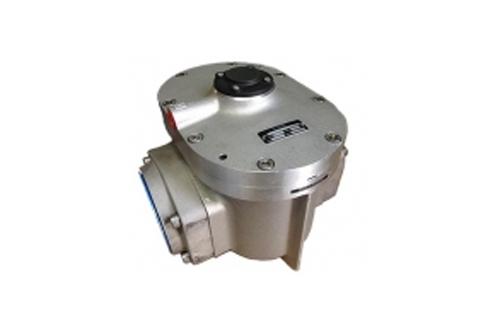

FLUIDEX series LOGF series is a Positive Displacement Flow Meter with large capacities covering flow rates up to 2500 LPM (660 US GPM). The meters are available in DN80 and DN100 (3" and 4") lines sizes. The LOGF has two rotating gears with oval shape. A fixed amount of the liquid passes between the gear teeth and through the meter after each revolution. The flow rate is identified by the number of shaft rotations. Registers can either be mechanical or electronic with ex-proof or Intrinsically Safe models. The LOGF is used in a wide range of applications including -but not limited to- loading, un-loading & distribution management of petroleum products, marine, aviation & many industrial facilities.

Features & Benefits

• High accuracy & repeatability.
• Available in DN80 and DN100 (3" to 4") lines sizes
• Flow range covered from 35~2500 LPM (10~660 US GPM)
• No need for flow conditioning.
• Measure low & high viscosity liquids.
• Optional integral check valves.
• Availability of a wide range of mechanical and electronic registers
• Availability of explosion proof and Intrinsically Safe models
• Quadrature pulse output option & bi-directional flow.
• Availability of High pressure models

Specification

Dimension
