제품 상세 정보

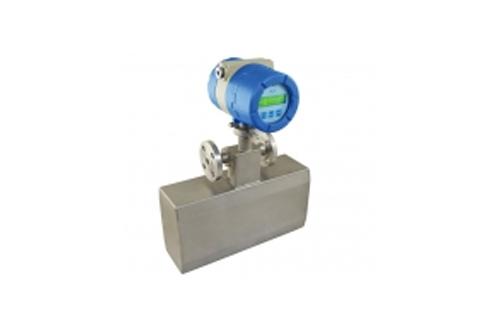

ACF6000 Series uses the Coriolis effect as a technique for liquid mass flow measurement. The ACF6000 can measure most of the liquids; the infrared light sensor makes it easy for you to set parameters & change the display data. The Double-C tube & Double-D Tube make it possible for the meter to be used in most liquid applications.

Features

Can be programmed by infrared light sensor without opening cover
High turndown ratio of flow rate
It comes any flanges such as ANSI, DIN, JIS... etc
Excellent for high pressure application
Simple for installation, commission and maintenance
Self-diagnostic capabilities, cable faults, pipe vibration
High accuracy of +/-0.2% of reading (or +/-0.1% of reading)
With forward / reverse flow rate measurement function

Specification

Sensor Type:	Display:
C tube (10-40mm) / U tube (50-150mm)	2 lines LCD with illumination
Size:	Flow Rate Unit
10mm ~ 200 mm (3/8" ~ 8")	g/s, Kg/min, kg/Hr, T/Hr, 6 Digit
Flow Range:	Density Unit
0 - 1000 Kg/Hr ~ 0 - 1106000 Kg/Hr	Kg/m3, g/cc, 6 Digit
Accuracy:	Totalizer Unit
+/-0.2% +/-ZS of reading (Standard)	g, Kg, Ton, L, M3, 7 Digits
+/-0.1% +/-ZS of reading (Optional)	Temperature
Repeatability:	^oC, ^oF, 4 Digits
+/-0.03% +/-ZS of reading	Keypad:
Density Range:	Infrared light Sensor,
200 - 2300 Kg/M3 (0.2 - 2.3 g/cm3)	can be programmed without
Accuracy	Opening the cover
+/-0.002 g/cm3	Turndown Ratio:
Temperature Range:	20 : 1
-40 ^oC ~ +125 ^oC (Standard)	Damping:
-40 ^oC ~ +250 ^oC (Optional, Separate Only)	0.01 To 1.0 Seconds
Material:	Low Flow Cutoff:
Wetted Parts	0.0% ~ 9.0%
Stainless Steel 316L	Communication:
Flange	RS485 (Modbus Protocol) (Standard)
Stainless Steel 316L	Hart Signal (Optional)
Sensor Housing	Current Output:
Stainless Steel 304	4-20 mA (Isolated)
Junction Box	Load
Aluminum Alloy (Epoxy Paint)	Max. 750
Process Connection:	Output Unit
Flange	Mass / Volume / Density / Temperature
Flange Type:	Pulse (Alarm) Output:
JIS 10K / JIS 20K / JIS 40K	Open Collector
ANSI 150# / ANSI 300# / ANSI 600#	Rating
DIN PN 10 / PN 16 / PN25 / PN 40	3-30Vdc, 50mA Max.
Protection Class:	Power Supply:
IP 67	90-260 VAC, 50/60 Hz or 24 VDC +/-10%
Explosion Proof Exde (ib) IIC T6 (Optional)	Power Consumption:
Installation:	30 - 40 W (Depend on sensor size)
Compact or Separate	Cable Entry:
Signal Cable Length:	Sensor to Converter- 3/4" G
10M - 100M	Signal output / Power supply- M20
	Ambient Temperature:
	-40 ^oC to +60 ^oC
	Max. Pressure:
	63 Kg/cm2
