Specification

Excitation:	Keypad:
DC pulsed	3 internal keys for programming
Display:	and display control
3 lines LCD with illumination	Data Storage:
Line 1	Operation parameters and totalizer
11 digit totalizer for forward flow	figures are stored by EEPROM for more
11 digit totalizer for reverse flow	than 10 years
11 digit totalizer for difference	Low Flow Cutoff:
Line 2	0 to 9.9 %
5 digit flowrate / velocity / % / mA / HZ	Damping:
Line 3	0 to 99 Seconds
Parameter / Query / Clr tot / Query LOG	Density Setting:
Alarm, Guidance	0.1 to 9.99 g/cm3
Totalizer Unit	Self Diagnosis:
T, Kg, g, lb, Ston, Lton,m3,L,mL,Igal, gal,	The following error message are
Mgal£¬bbl, ft3, a-ft	displayed if failure occurs
Time Unit	- Coil failure
sec, min, hour, day	- Power failure
Measuring Range:	- Overanged Output
Min.  0 to 0.15 m/s	- Internal error
Max. 0 to 15 m/s	- Overflow
Accuracy:	- Empty pipe
+/-0.2% of reading (Velocity >=0.5 m/s)	Cable Entry:
+/-0.001 m/s (Velocity < 0.5 m/s)	Standard :M20   Option:1/2"NPTF
Repeatability:	Protection Class:
+/-0.05% of reading	IP 67, Explosion proof, Exd(ib)ibqllBT5
Current Output:	Ambient Temperature:
4-20 mA (Isolated)	-25 to +65 oC
Load	Material:
Max. 600	Aluminum Alloy
Pulse Output:	Power Supply:
Open collector	90-260 Vac, 50/60 Hz
Rating	24Vdc +/-10% (Option)
3 to 30 Vdc, 50 mA Max.	Power Consumption:
Pulse Rate:	3-17 W (Dependent on sensor size)
1)Scale pulse (Pulse/mL, Pulse/L, Other)	Weight:
2)Frequency: 0-5000 Hz	4.5 Kg
Pulse Width:	Mounting:
50% of band width	Bracket on 2" pipe
Alarm:
High/Low with open collector output
Rating
3 to 30 Vdc, 50 mA Max.
Communication:
Bluetooth (Android)Standard
RS485 (MODBUS Protocol)Standard
HART signal (Compatible)Optional

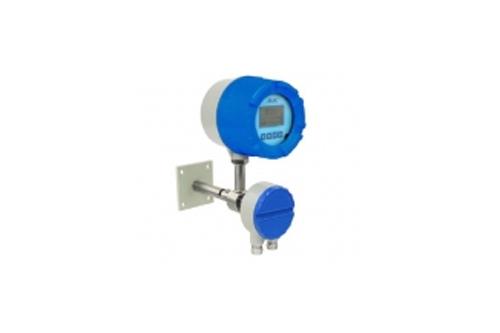

The Aliamag AMC4000 series converter is a microprocessor based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting.

Features

• Battery life 2~3 years in normal working condition
• Accuracy of +/-0.3% value of reading
• Bi-directional flow measurement, current and pulse output
• 3 lines of LCD display flowrate and totalizer
• Records up to 99 power on/off time
• IP67 / IP68 protection class
