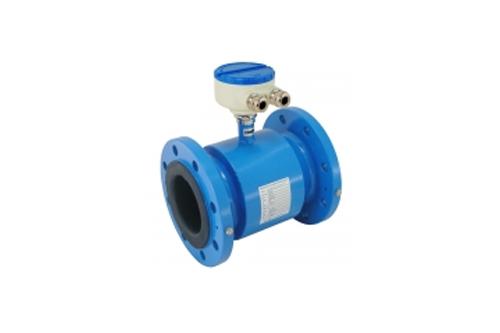

AMF900 Series is a flange type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 6 to 2000mm.  AMF900 is widely used for tap-water, waste water, food & beverage pulp &paper and many other industrial fluid.

AMF900 Series electromagnetic flowmeter could be used in compact or separate model with AMC Series converter of electromagnetic flowmeter.

Feature

• Various liner and electrode satisfy most industrial applications
• Flow Velocity range: 0-12 m/s, precise in low flow applications
• It comes any flanges such as, ANSI, DIN, JIS... etc
• Excellent for high pressure application
• Protection class: IP68 available; sensor submersible
• FEP Liner is suitable for vacuum tube
• High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
• With Forward/Reverse flowrate measurement function

Specification

Size:                                                                             Electrode & Grounding:
6,10,15,20, 25,32,40,50,65,80,100,125                           Stainless Steel 316L
150,200,250,300,350,400,450,500,600                            Hastelloy B
700,800,900,1000,1200,1400,1600                                 Hastelloy C
1800,2000 mm                                                               Titanium
Measuring Range:                                                        Tantalum
Velocity   0 - 0.25 m/s min.                                              Platinum
               0 - 12  m/s max.                                             Tungsten Carbide
Material:                                                                      Cable Entry:
Measuring Tube                                                           Standard :PG11  Option:1/2"NPTF
Stainless Steel 304                                                         Ambient Temperature:
Flange                                                                          -25 to +60 ℃
Carbon Steel (Standard)                                                 Process Connection:
Stainless Steel 304 (Option)                                            Flange
Stainless Steel 316, 316L (Option)                                   Flange Type:
Coil Housing                                                                 JIS 10K / JIS 20K / JIS 40K
Carbon Steel (Standard)                                                  ANSI 150# / ANSI 300# / ANSI 600#
Stainless Steel 304 (Option)                                            DIN PN 10 / PN 16 / PN25 / PN 40
Stainless Steel 316,316L (Option)                                    Grounding Resistance:
Liner:                                                                           Must be  less than 10
Polyurethane (25-600 mm)                                             Accuracy:
Neoprene (50-2000 mm)                                                +/-0.4% read-out values (Velocity >=0.5 m/s)
FEP (6-300 mm)                                                            +/-0.0025 m/s (Velocity < 0.5 m/s)
PTFE (25-800 mm)                                                         +/-0.2% read-out values
PFA (6-300 mm)                                                             (Suitable for AMC3100 converter only)
Protection Class:                                                         Temperature:
Junction box IP67, Body IP68                                          -10 ~ +60℃ (Polyurethane, PU)
IP 68 (Submersible)                                                       -20 ~ +70℃ (Neoprene)
Conductivity:                                                               -40 ~ +180℃ (FEP)
More than 5 uS/cm                                                         -40 ~ +180℃ (PTFE/PFA)
Explosion Proof:                                                          Max. Pressure:
Exd(ib)ibqIIBT5 (with AMC3100/AMC4000 only)                350 Kg/㎠
