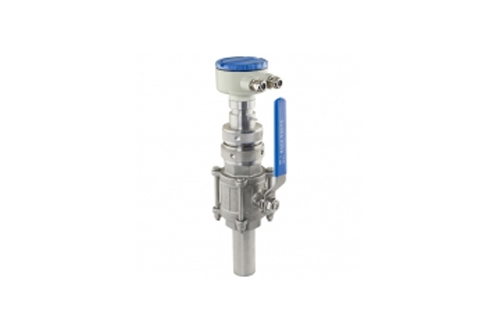

AMF100 Series is an insertion type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 150 to 6000 mm. AMF100 is widely used for tap-water, waste water, food & beverage, Pulp & Paper and many other industrial fluid.

AMF100 Series electromagnetic flowmeter could be used in compact or separate type with AMC Series converter of electromagnetic flowmeter.

Feature

• Light and compact version
• Measuring range up to 12 m/s
• Suitable for permanent or temporary installation
• Price virtually independent of pipe diameter
• Hot-tap into pressurised pipe
• Good accuracy over wide operating flow range
• With Forward/Reverse flow rate measurement function
• Stable calibration and reliable operation

Specification

Size:                                                                   Cable Entry:
150 , 200 , 250 , 300 , 350 , 400 , 450                   Standard:  PG11  Option:1/2"NPTF
500 , 600 , 700 ..... 6000 mm                               Grounding Resistance:
Measuring Range:                                              Must be  less than 10
Velocity   0-0.25 m/s min.                                     Accuracy:
              0-12 m/s max.                                       +/-2% of reading (Velocity >=0.5 m/s)
Material:                                                            +/-0.8% of Full Scale (F.S.>2 m/s)
Protection tube                                                  +/-0.01 m/s (Velocity < 0.5 m/s)
Stainless Steel 316                                               Repeatability:
Screw                                                                 +/-0.4% of reading
Stainless Steel 316                                               Process Temperature:
Electrode                                                           -10 ~ 80 oC
Stainless Steel 316L                                              Ambient Temperature:
Cap                                                                    -25 to +70 oC
PTFE                                                                   Max. Pressure:
Ball Valve                                                           10 Kg/cm2
Stainless Steel 316(Optional)                                Conductivity:
Hot-Tap tool / Kit                                              More than 10 uS/cm
Stainless Steel 304(Optional)                                Weight:
Mounting:                                                          3 ~ 10 Kg
Compact or separate                                            Coil Resistance:
Process Connection:                                          70 - 98 Ω
Threaded                                                           Sensor Diameter:
Threaded, 2" BSP Female                                      45 mm
Flange                                                               Sensor Length:
Flange, JIS / ANSI / DIN                                       310mm (for 150 ~ 600mm pipe ID)
Installation:                                                      550mm(for 600 ~ 2400mm pipe ID)
Direct insert to the pipe                                        800mm(for 2400 ~ 4200mm pipe ID)
Insert with Ball Value                                           1050mm (for 4200 ~ 6000mm pipe ID)
Hot-Tap into pressurised pipe
Protection Class:
IP 67
IP 68 (Submersible)
Explosion Proof:
Exd(ib)ibqIIBT5
(with AMC3100/AMC4000 only)
