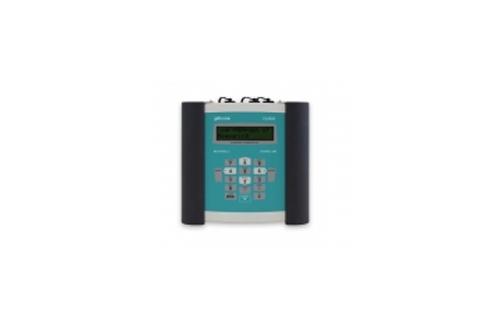

Portable ultrasonic flowmeter for gas, steam and liquids

Portable instrument for non-invasive, quick ultrasonic flow measurement with clamp-on technology for all types of piping

Features

Configurable as multifunctional measuring system: – flow measurement of gases, compressed air and saturated steam up to max. 356 °F – flow and thermal energy measurement of liquids

• Precise bidirectional and highly dynamic flow measurement with the non-invasive clamp-on technology
• High precision at fast and slow flow rates, high temperature and zero point stability
• Portable, easy-to-use flow transmitter with 2 flow channels, multiple inputs/outputs, an integrated data logger with a serial interface
• Water and dust-tight (NEMA 4); resistant against oil, many liquids and dirt
• Li-Ion battery provides up to 25 hours of measurement operation
• Automatic loading of calibration data and transducer detection for a fast and easy set-up (less than 5 min), providing precise and long-term stable results
• User-friendly design
• Transducers available for a wide range of inner pipe diameters and fluid temperatures
• Probe for wall thickness measurement available
• Robust, water-tight (NEMA 4) transport case with comprehensive accessories
• QuickFix for fast mounting of the flow transmitter in difficult conditions

Applications

Designed for industrial use in harsh environments, applicable in all areas such as maintenance, energy management, troubleshooting and verification of installed measuring systems. Practical applications

• Data gathering in energy management and certifications according to ISO 50001
• Supervision and monitoring of compressed air and steam systems
• Hydraulic balancing of cooling towers
• Measurement on natural gas pipelines and in natural gas storage installations
• Measurement of synthesized gas and injection gas
• Measurement for the gas supply industry
• Supervision of permanently installed meters, service and maintenance
