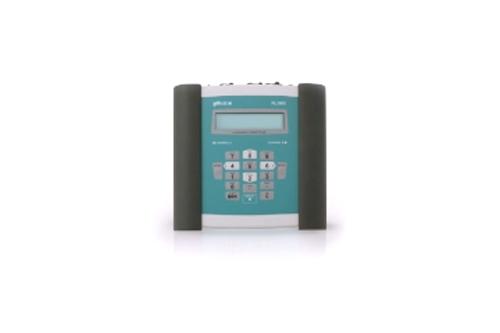

Portable Ultrasonic Flow Measurement of Gas - G601

New portable instrument for non-invasive, quick ultrasonic flow measurement with clamp-on technology for all
types of piping

Feature

• Non-invasive measurement using the clamp-on method for precise bi-directional, highly dynamic flow measurement
• New portable, easy-to-use flowmeter with 2 flow measurement channels, multiple inputs/outputs, an integrated data logger and a serial interface in the standard version
• Automatic loading of calibration data and transducer detection, reduces set-up times and provides precise, long-term stable results
• Li-Ion battery for 14 hours of measurement operation
• Proven clamp-on method; transducers available for a wide range of rated diameters (DN 30…1600) and temperatures in the range of -40...+170 °C; resistant to dust and humidity
• Integrated wall thickness measurement
• Water and dust-tight; resistant against oil, many liquids and dirt
• Robust, water-tight (IP 67) transport case with comprehensive accessories
• QuickFix for

Application

• Designed for industrial use in harsh environments, in gas processing and natural gas extraction, chemical industry and in the petroleum industry. Practical applications:
  - Measurement on natural gas pipelines and in natural gas storage installations
  - Measurement of synthesized gas and injection gas
  - Measurement for the gas supply industry
  - Supervision of permanently installed meters, service and maintenance
