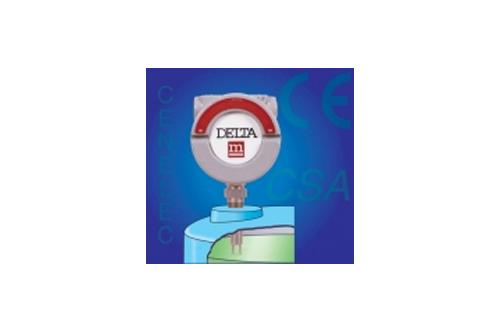

Single Channel Point Level Flow - Model LS 3200
microtuf ®

Main Feature

•  Thermal point level switch for the detection of level in all vessels.
• Wide operating temperature range -100°F to +850°F (-70°C to +458°C).
• Switch on level change of .03 inch without concern for changing temperature, density, dielectric constant or chemical composition
• Two year workmanship warranty.
• Free of all moving parts that can stick, coat or fail.
• Fast response time of .1 to 1 second on wetting, media dependent.
• Self heating sensor design improves repeatability. No separate heater to fail or slow response time.
• CE, CENELEC and CSA Approved.

Specification

Sensor

• Type: Thermal Differential, Dual RTD Sensors
• Process Connection: Standard  0.75 inch MNPT
  Optionally  0.5 inch and larger MNPT and various other
  process connections such as sanitary and flanges
• Insertion Length: Standard  2.0 inch Optionally  0.5 inch or greater
• Operating Temperature Range :
  Standard  -100F to 390F (-70C to +200°C)
  Medium Temperature to +572F  (+300°C)
  High Temperature to +850F  (+458°C)
• Materials of Construction: Standard 316L Series Stainless Steel
  Optionally Hastelloy, Monel, Inconel and other exotic materials
• Operating Pressure Range: Standard  to 3000 psia (207 bar)

Electronics

• Power: Standard  110VAC Optionally 220VAC, or 24VDC at 3 watts (No heater power required)
• Operating Temperature Range: Standard  -40F to +140F  (-40C to +60C)
  Optionally  remote electronics for use in medium and high temperature environments
• Outputs: DPDT Relay contacts rated at 5 amp, 250 VAC with fail safe capability
• Self-Test:  Integral and Automatic during power up
• Enclosure: Explosion proof; NEMA 3, 4X, 7, and 9; CSA, FM, UL, CENELEC, and EECS approved

Instrument

• Operating Range: Switch on level change of .03 inch. Available with insertion lengths from 0.5 inch to 30 feet.
• Response Time: Sensor response time 0.1 to 1 second media dependent
• Stability: Drift < .5% from calibrated setpoint over a range of ±50° F. Temperature compensated throughout entire range.
• Repeatability:  +/-1% of setpoint
• Approvals:  CE, CSA,CENELEC Class 1 Div. 1 Groups B, C, & D
