i28, i36, i38

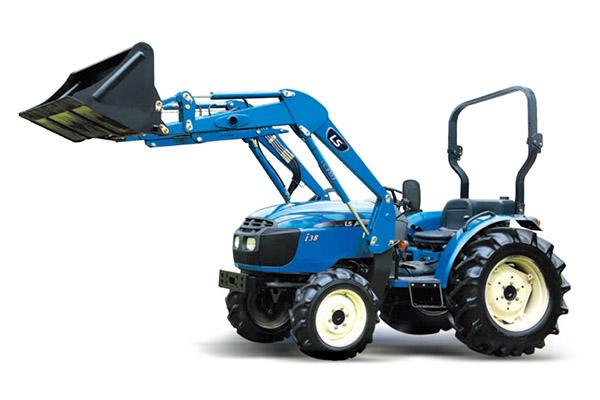

Synchro Shuttle - i28, i36, i38
Designed for Low noise, low vibration Helical gear and full floating design significantly reduces the noise and vibration for operators, making work more comfortable. | Standard Independent PTO Easy PTO on/off Control for a variety of works. | Eco-friendly Air cleaner High quality Air cleaner installed to maximize the engine performance. |
Water proof Front Axle Water and rust proof front axle features a strong structure and durability. It offers the best performance in paddy fields. | Remote control valve Max 2 pairs of remote control valves offer high compatibility with various implements. | Hydrostatic power steering with tilt Makes turning easier, improves control and reduces fatigue and enhances comfort. |
Synchro Shuttle lever Makes changing direction easier than competitive non-shuttle gear models. | Backlit Dash Pnel Backlit Dash panel helps you easily check the vital functions of the tractor, such as engine speed, fuel level and working time, etc. | Adjustable Seat Keeps you in a comfortable and safe position for maximum control. | Easy open one-piece hood Provides accessibility for easy maintenance. |
Specification
| Category | i28 | i36 | i38 | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 3142 | ||
|---|---|---|---|---|
| Overall width witd tires (mm) | 1323 | 1380 | ||
| Wheelbase (mm) | 1674 | |||
Overall height to top ROPS (mm) | 2316 | 2343 | ||
| Total weight without ballast (kg) | 1280 | 1325 | ||
| Tires | Front | 7-14 | 7-16 | |
| Rear | 11.2-24 | 12.4-24 | ||
| PTO | Type (options) | Independent | ||
| Base speed (rpm) | 540 / 750 / 1000 | |||
| Hydraulic | Control system (options) | Position / Draft | ||
| Remote Ports (options) | 2(Front), 2/4 (Rear) | |||
| Engine | Engine Hp(kW) | 28.2(21) | 38(28.3) | 38(28.3) |
| Rated speed (rpm) | 2600 | 2700 | 2600 | |
| Traveling system | Transmission Type (options) | Synchro Shuttle / HST | Synchro Shuttle | |
| No. of speed | 12FX12R (Synchro Shuttle) | 12FX12R | ||
| Forward Speed (Km/h) | 1.2 ~ 23 (Synchro Shuttle) / 0 ~ 23.3 (HST) | 1.3 ~ 26 (Synchro Shuttle) / 0 ~ 24.2 (HST) | 1.3 ~ 26 | |
