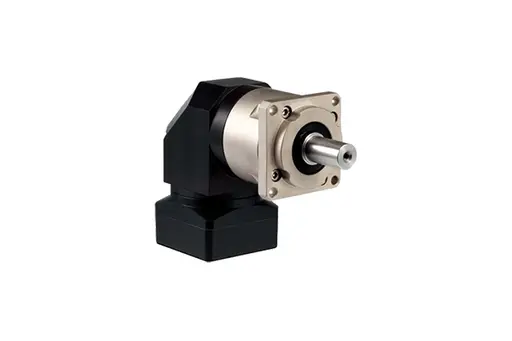

HAW Series
Square output flange
Right-angle type gearbox: Standard/Premium/Advanced
Features (Product Availability)
| HAW | |||||||
|---|---|---|---|---|---|---|---|
| Stage | Gear ratio | 60 | 75 | 100 | 140 | 180 | 220 |
| 1A | 3~10 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| 14,20 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 2B | 15,20 | ☏ | ☏ | ☏ | ☏ | ☏ | ☏ |
| 25~100 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 120~200 | ☏ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 2A | 15,20 | ☏ | ☏ | ☏ | ☏ | ☏ | ☏ |
| 25~100 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 120~200 | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
| 1M/2M | 3~200 | ☏ | ☏ | ☏ | ☏ | ☏ | ☏ |
○ : Standard, △: Custom made, ☏ : Contact sales person.
Specification
Please contact LS ELECTRIC sales person for ★ gear ratio.
(1) Considering safety factors, nominal output torque is calculated
(2) Max. output torque is equivalent to 60% of the emergency stop torque
