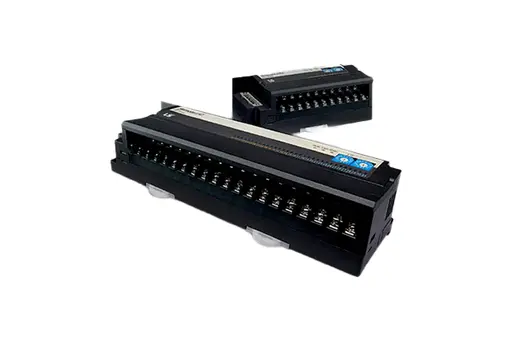

Smart I/O Series
Smart I/O for efficient and simple system Using Smart I/O, users can reduce the wiring and control I/O in real time, which means it helps to realize a simple and effective system. Also it provides various I/O(DC/TR/Realy, Analog) and supports various communication (RAPIEnet, EtherNet/IP, Modbus TCP, Rnet, DeviceNet, Profibus-DP, RS422/485)
|
Feathers ㆍWiring reduction and real time control of distributed I/O ㆍSupporting Rnet, DeviceNet, Profibus-DP, MODBUS(RS-422/485), RAPIEnet(RJ-45) ㆍVarious I/O (DC/TR/Relay) modules with a unit of 16/32 points |
 |
Communication Specifications
| Item | Rnet (LS dedicated network) | Profibus-DP | DeviceNet | MODBUS | RAPIEnet(RJ-45) |
|---|---|---|---|---|---|
| Protocol | LS ELECTRIC dedicated protocol (Fnet for Remote) |
Profibus-DP (RS-485/EN50170) |
DeviceNet (CAN) | MODBUS (RS-422/485) | Fast Ethernet |
| Transmission speed | 1 Mbps | 9.6 Kbps ~ 12 Mbps | 125/250/500 Kbps | 2.4 Kbps ~ 38.4 Kbps | 100Mbps |
| Transmission distance | 750 m/segment | 100 m ~ 1.2 km | 500/250/125 m (Thin cable: 100 m) | 500 m | 100M |
| Topology | Bus Token | Bus | Trunk & Drop | Bus | CRC32 |
| Transmission | Pass & Broadcast | Token Pass & Master/Slave (Poll) | CSMA/NBA (Poll, Cyclic, COS, Bit Strobe) |
Master/Slave (Poll) | CSMA/CD |
| No. of stations | 32/segment (Input: 32, Output: 32) | 32/segment, 99/network | 64 | 32 | 64 |
|
Feathers ㆍEasy configuration of remote systems using XGB expansion I/O ㆍUp to 8 modules expandable with a network adapter ㆍMax. 256-point digital I/O ㆍMax. 16 channel analog I/O ㆍNetwork adapter: Profibus-DP, DeviceNet, Rnet, Modbus TCP, EtherNet/IP |
 |
Modbus TCP, EtherNet/IP Specification
