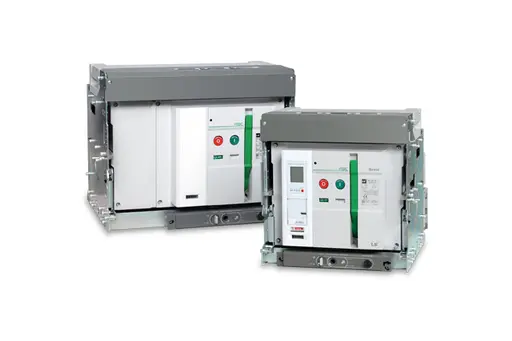

DC UL Switch-Disconnector

Premium DC UL Switch-Disconnectors provide optimization products for DC system applications such as UPS, PV, and ESS. The full line Susol DC Series are able to meet the demands of the renewable market such as increasing power generation capacity and high DC Voltage.

Product Overview
UL DC Switch-Disconnector series are low voltage power DC switch-disconnectors which are UL listed (UL 489B & UL 489F)​. Up to 1500V 4000A, Susol DC Switch-Disconnector series are suitable for severe inductive DC loads and meets the demands of the increasing power generation in PV and ESS.​

Benefits

ㆍBest application for PV/ESS system in UA through UL 489 B & UL 489 F

ㆍ100% rated witch disconnector (Molded circuit switch)

ㆍHigh short circuit withstand capacity : 100kA

ㆍPhysical size for installation and accessories are compatible with existing Susol ACB

Main specification

ㆍRatings : up to DC 1500V 4000A

ㆍShort circuit withstand current : 100kA

ㆍStandards : UL 489 B, UL 489 F
