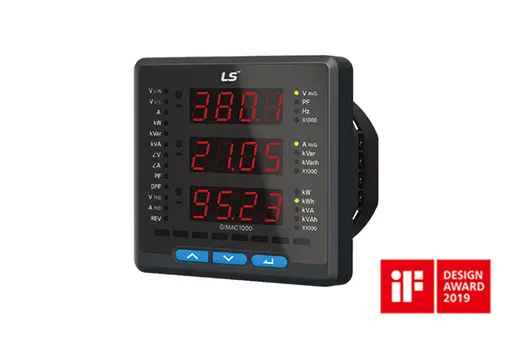

GIMAC1000
It is an advanced digital Power Meter that enables power quality analysis such as high-precision measurement, harmonics, and THD measurement of various electric quantities of power distribution system.
Features
Measurement/precision measurement/Communication function
ㆍVarious measurement elements and high precision measurement
ㆍExtended harmonic measurement range (31th harmonic)
ㆍWide range of PT inputs (AC 10~452V)
ㆍIncorrect wiring check function
ㆍCompact appearance design
ㆍFree Voltage Control Power
ㆍAutomatic Scroll Display of Measured Items
ㆍRS-485, Ethernet communication support
ㆍProvide rapid spanning tree protocol function
Measurement
Specification
| Type | Specification | ||
|---|---|---|---|
| Wirings | 1P2W, 1P3W, 3P3W (Delta), 3P3W (Y), 3P4W | ||
| Input | Frequency | 50Hz/60Hz | |
| Voltage | PT | AC 10~452V (PT 2nd 110V) | |
| Current | CT | 0.05~6A (Rating : 5A) or 0.01~1.2A (Rating : 1A) | |
| Control voltage | AC/DC 100~240V (Free Voltage) | ||
| Power consumption | 4.5W or less | ||
| Burden | PT : 0.1VA or less | ||
| CT : 0.5VA or less | |||
| Insulation Resistance | DC 500V 10MΩ or higher | ||
| Insulation Voltage | AC 2kV(1kV)/for 1min | ||
| Impulse Voltage | AC 5kV (3kV) or higher, 1.2 x 50㎲ Standard waveform | ||
| Overload withstand | Current circuit | Rated current x 1.2times for 3hours Rated current x 8times for 2seconds |
|
| Voltage circuit | Rated voltage x 1.15times for 3hours | ||
| Fast Transient/Burst Immunity | Power Input 4kV (PT, CT) | ||
| Electrostatic Discharge | Air 8kV Contact 6kV |
||
| Operation temperature | -20℃~ +60℃ | ||
| Storage temperature | -25℃~ +70℃ | ||
| Humidity | RH 80% or less (non-condensing) | ||
| Certification | IEC60255, IEC61000-4 | ||
| Communication | MODBUS RTU/RS485, MODBUS TCP/IP ETHERNET | ||
| Dimension (W×H×D | 110×110×84.6 mm (basic), 110×110×106.6 mm (ETHERNET TYPE) | ||
| Weight | 0.52kg | ||
