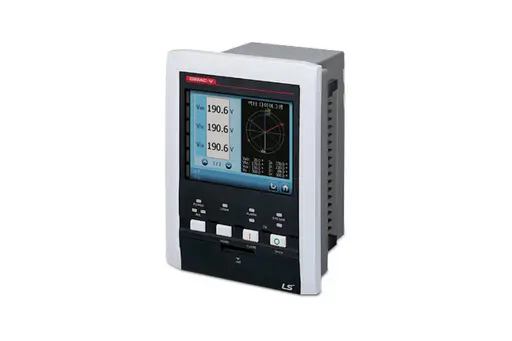

GIMAC-V

Premium multifunction digital integrated metering and control device - Color graphic Touch LCD type.



Features

Measurement Function

ㆍHigh precision measurement of various measurement elements (35 elements)

ㆍExtended power quality measurement (63th, THD, TDD, K-factor, Crest factor)

ㆍEvent recording (20~1024 samples)

ㆍSelect Before Operating (SBO) Function

ㆍAutomatic Power Factor Control (APFC) (optional)

ㆍTransient wave and event measurement



Convenience Function

ㆍColor touch graphic LCD

ㆍLanguage and user selection menu

ㆍManager software for PC connection

ㆍStatistics and trends for measurement elements

ㆍAdd-ons



Communication Function

ㆍVarious communication functions (3 ports)



Measurement

Type	Measuring item	Datiled measuring item	Accuracy
Voltage (V)	Line voltage	Vab, Vbc, Vca, Vlavg Note	0.2%
	Phase voltage	Va, Vb, Vc, Vnavg	0.2%
	Normal, reversed-phase voltage	V1, V2	-
	Crest Factor	Vab, Vbc, Vca, Va, Vb, Vc	-
Current	Phase current	Ia, Ib, Ic, Iavg	0.2%
	XPhase current	Ix	0.2%
	Normal, reversed-phase currents	I1, I2	-
	Crest Factor	Ia, Ib, Ic	-
Phase	Line voltage	∠Vab, ∠Vbc, ∠Vca	0.5°
	Phase voltage	∠Va, ∠Vb, ∠Vc	0.5°
	Phase current	∠Ia, ∠Ib, ∠Ic, ∠Ix	0.5°
Electricity	Active power	Pa, Pb, Pc, ΣP	0.5class
	Reactive power	Qa, Qb, Qc, ΣQ	0.5class
	Apparent power	Sa, Sb, Sc, ΣS	0.5class
Electricity energy	Active energy	WHa, WHb, WHc, ΣWH	0.5class
	Reactive energy	VARHa, VARHb, VARHc, ΣVARH	0.5class
	Reverse active energy	rWHa, rWHb, rWHc, ΣrWH	0.5class
	Reverse reactive energy	rVARHa, rVARHb, rVARHc, ΣrVARH	0.5class
	Apparent energy	VAHa, VAHb, VAHc, ΣVAH	0.5class
freq	Frequency	F(Hz)	0.1%
Power Factor	Power Factor(PF)	Power Factor Power Factor(PF) PFa, PFb, PFc, ΣPF phase	phase accuracy
	1st harmonic power factor (DPF)	DPFa, DPFb, DPFc, ΣDPF
Harmonics	Line voltage	Vab, Vbc, Vca 2~63th Harmonics	-
	Phase voltage	Va, Vb, Vc 2~63th Harmonics
	Phase current	Ia, Ib, Ic 2~63th Harmonics	-
	THD	Vab, Vbc, Vca, Va, Vb, Vc, Ia, Ib, Ic
	TDD	Ia, Ib, Ic
	K-FACTOR	Ia, Ib, Ic
AI	4~20mA	AI01, AI02	0.5%

Note : Average of line voltage



APEC

Type		APEC
BANK setting	BANK number	0-8
	Alarm number	0-1
Capacitor capacitance setting		None ~ 999MVA
Alarm contact setting		Setting one of extra contact out of DO_01~DO_08
Capacitor closing delay time		10~300sec / 1sec
Dead time (time for charge or discharge)		10~300sec / 1sec
Maximum power factor setting		0.95~1~ -0.90 ( - : indicating lead phase)
Minimum power factor setting		0.80 ~ 0.95
Alarm power factor setting (Alarm occurred)		0.00 ~ 0.90
Event occurrence Under Voltage and control Over PF	Low Current	Set whether to get EVENT occurred or set the control in case the average current of 3 phase is 1A
	Under Voltage	Set whether to get EVENT occurred or set the control in case phase voltage ( 3 phase 3 wire, open delta, line voltage)
	Over PF	Set whether to get EVENT occurred or not when over Max. PF
	Under PF	Set whether to get EVENT occurred or not when over Min. PF
	Over Volt THD	Set whether to get EVENT occurred and BANK control or not when THD is above the setpoint
Power Factor control	Automatic control	Auto
	Manual control	Manual
	Combination control	In case all capacitances are set
	Circulation control	Capacitor In case capacitances are not set - Opening the closed one first and closing the opened last



Specification

※ Avoid places with vibration, shock, dust, moisture, corrosive, gas, etc.
