TWS Touch Web Sever

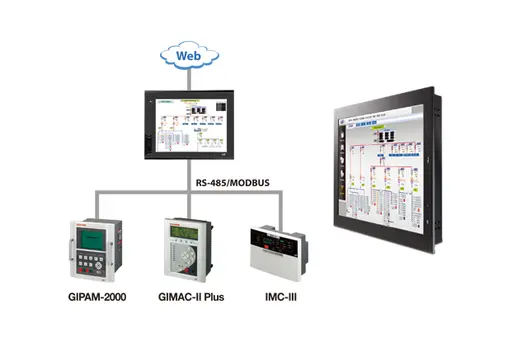

A touch type smart power monitoring and control system. Allows for establishment of optimal power monitoring and control system by connecting the network with various relays of LS ELECTRIC.
Features
Intuitive Integrated Usage Environment
ㆍVarious communication drivers, physical layer support, and logical layers for tags
XGT InfoU Panel PC
ㆍAll-in-one product with the perfect combination of hardware and software
ㆍHigh reliability considering harsh industrial sites
Open Structure
ㆍStable system operation with terminated system support
ㆍVarious communication interfaces such as RS232, RS485, ethernet and wireless LAN (option)
Specification
| Rating | XPC-NTP12BF | XPC-NTP15BF | XPC-NTP17BF | XPC-NTP19BF | |
|---|---|---|---|---|---|
| Display | Size | 12.1" (30.7Cm) | 15" (38Cm) | 17" (43.1Cm) | 19" (48.2Cm) |
| Resolution | 1280 x 1024 | ||||
| Brightness | 250cd/m² | 300cd/m² | 350cd/m² | ||
| System | CPU | Intel Baytrail-D J1900 2.0GHz Quad Core | |||
| Memory | DDR3 4GB | ||||
| Disk | SSD 128GB | ||||
| OS | Window 10 | ||||
| Interface | Serial | CH.5 (RS232 x 4, RS422/RS485 x 1) |
CH.5 (RS232C×3/RS422/RS485) | ||
| USB | CH.4 (USB 3.0/USB 2.0×3) |
CH.6 (USB 3.0/USB 2.0×5) | |||
| Ethernet | CH.2 10/100/1000Mbps | ||||
| Wireless LAN (option) | |||||
| Display | HDMI (Max. resolution: 1920 x 1200) or VGA | ||||
| Audio | Speaker jack | ||||
| Weight | 4.4 | 5 | 7 | 7.5 | |
| Operating temperature | 0˚C ~ 50˚C | ||||
| Storage temperature | -20˚C ~ 60˚C | ||||
| Dimensions | 352×260.6×73mm | 380×334×80mm | 438×356×72.5mm | 437×378.5×76.7mm | |
| Panel Cut-out | 329×237mm | 355×309mm | 410×348mm | 410×358mm | |
| Input Voltage | AC 100~240V Adapter or DC 12~24V | ||||
| Test method used | EN 61000-6-4:2007/A1:2011 | ||||
| EN 61000-6-2:2005 | |||||
| IP Grade | IP65(Front) | ||||
| Power Consumption ★ | 30W or less | 30W or less | 40W or less | 40W or less | |
* Additional external device disconnect condition, Maximum power consumption of the adapter is 60W
