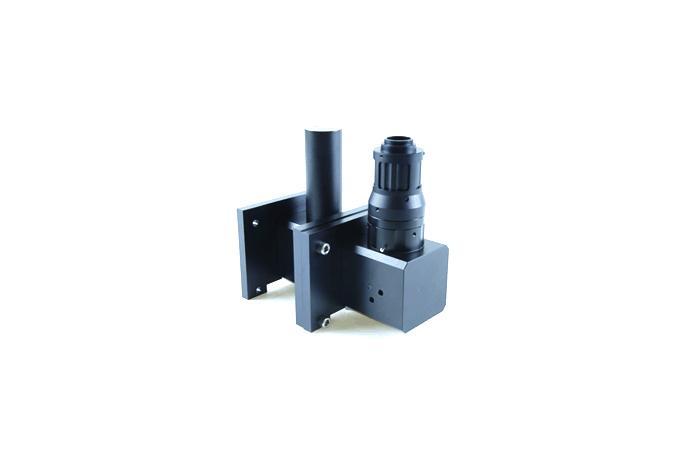

CAMERA ADAPTER SPEC
| MODEL | Tube Lens | Illumination | Reference |
|---|---|---|---|
| CAMERA ADAPTER LENS |
Focal Lemgth : 100mm Tube Magnification : 0.5x |
Hexagon Type LED Illumination |
An operating distance, m agnitude, resolution power, and definition will be determined pursuant to the specifications of the F-theta Objective Lens and the Tube Lens respectively. |
| Focal Lemgth : 150mm Tube Magnification : 0.75x |
|||
| Focal Lemgth : 200mm Tube Magnification : 1.0x |
Laser DUAL TUBE SPEC
| Model | Tube Lens | Illumination | Magni fication |
Illumination | Spot Diameter (Beam Diameter : 4~8mm) |
Depth of Focus (Beam Diameter : 4~8mm) |
|---|---|---|---|---|---|---|
| DUAL TUBE LENS |
Focal Lemgth : 50mm |
M PLAN APO NUV 20X |
5X | Koehler Illumination |
1.69(um) ~ 0.8(um) |
± 2.7(um) ~ ±0.33(um) |
|
Focal Lemgth : 100mm |
M PLAN APO NUV 20X |
10X | Koehler Illumination |
1.69(um) ~ 0.8(um) |
± 2.7(um) ~ ±0.33(um) |
|
|
Focal Lemgth : 200mm |
M PLAN APO NUV 20X |
20X | Koehler Illumination |
1.69(um) ~ 0.8(um) |
± 2.7(um) ~ ±0.33(um) |
Laser Scriber SPEC
| MODEL | Tube Lens | Illumination | Features |
|---|---|---|---|
| Laser Scriber | 0.25~2.0X Tube Lens |
Coaxial, Backlight |
·Minimization of cutting line width |
Raman Module SPEC
| MODEL | Features |
|---|---|
| Raman Module |
Principle of Raman Effect |
