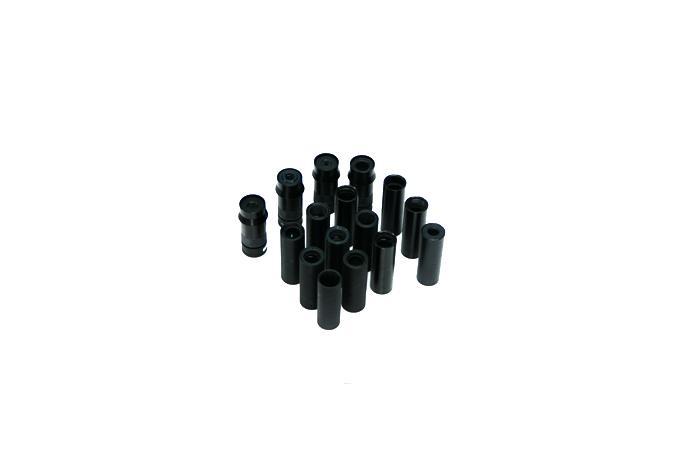

product Image
Tube Lens
모델명
CVMS05120 Series
시리즈
대물렌즈
전체보기
자료
-
구매정보
provider logo
리스광시스템(주)

광학시스템 솔루션 업체, 반도체, LCD, LED, 정렬광학계 등

연락처
043-216-7009
이메일
sales@leesos.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
리스광시스템(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
47136
제품명
Tube Lens
모델명
CVMS05120 Series
사이즈
-
중량
-
제품 상세 정보

PARFOCAL TUBE LENS

MODEL Tube
Magnification		 EFL
(Effective
Focal Length)		 Image
Space NA		 F / Number Optical
Maximum
Distortion		 Sensor
Size
CVMS05120 - 1K055 0.55X 110mm 0.054 9.2 <0.1% 12mm
CVMS05120 - 1K075 0.75X 150mm 0.039 12.5 <0.05%
CVMS05120 - 1K100 1.0X 200mm 0.029 16.7 <0.05%
CVMS05120 - 1K150 1.5X 300mm 0.019 25 <0.1%
CVMS05120 - 1K200 2.0X 400mm 0.014 33.3 <0.1%

MODEL Tube
Magnification		 EFL
(Effective
Focal Length)		 Image
Space NA		 F / Number Optical
Maximum
Distortion		 Sensor
Size
ST-N50-025 0.25X 50mm 0.079 6.3 <0.1% 6mm
ST-N66-033 0.33X 66mm 0.075 6.6 <0.1%
ST-N100-050 0.5X 100mm 0.059 8.3 <0.15% 8mm
ST-N150-075 0.75X 150mm 0.039 12.5 <0.05%
ST-N200-100 1.0X 200mm 0.029 16.7 <0.05%
ST-N300-150 1.5X 300mm 0.02 25 <0.05%
ST-N400-200 2.0X 400mm 0.015 33.3 <0.05%
ST-M15H-075 0.75X 150mm 0.039 12.5 <0.1% 20mm
ST-M20H-100 1.0X 200mm 0.029 16.7 <0.15%
ST-M30H-150 1.5X 300mm 0.019 25 <0.15%
ST-M48H-200 2.0X 400mm 0.015 33.3 <0.05%
ST-M48H-240 2.4X 480mm 0.012 40 <0.1%



UV TUBE LENS

MODEL Tube
Magnification		 EFL
(Effective Focal Length)		 Image
Space NA		 F / Number Optical
Maximum
Distortion		 Sensor Size
UVT 200 1.0X 200mm 0.024 20 <0.05% 11mm



TUBE LENS ETC

MODEL Tube
Magnification		 EFL
(Effective Focal Length)		 Image
Space NA		 F / Number Optical
Maximum
Distortion		 Sensor Size
CWT-F100 0.5X 100mm 0.059 8.3 <0.05% 11mm
LOS-F180 1.0X
(Olympus Type)		 180mm 0.033 15 <0.1% 27mm
LOS-OBT-F200 1.0X 200mm 0.029 16.7 <0.1% 30mm
