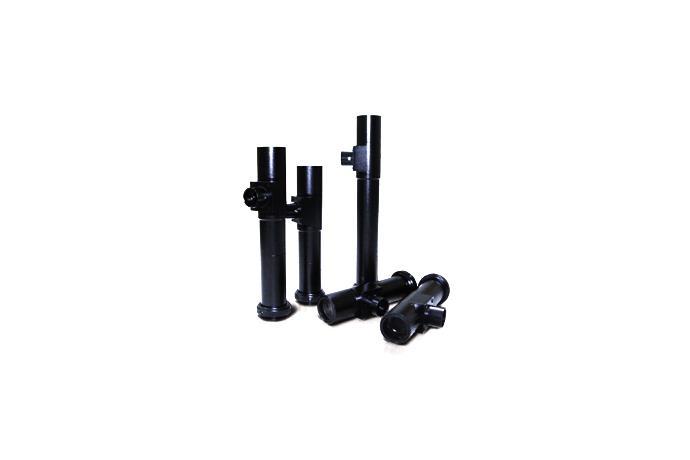

CVMS Series
모델명
CVMS Series
시리즈
대물렌즈
전체보기
자료
-
구매정보
provider logo
리스광시스템(주)

광학시스템 솔루션 업체, 반도체, LCD, LED, 정렬광학계 등

연락처
043-216-7009
이메일
sales@leesos.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
리스광시스템(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
47135
제품명
-
모델명
CVMS Series
사이즈
-
중량
-
제품 상세 정보

CVMS-OL SERIES

MODEL Optical
magnification		 WD(mm) Depth of field Resolution NA CCD Size MOUNT
CVMS-10-OL 10X 50.5
mm		 6.2um 1.59um 0.21 2/3" Sensor: 0.88 x 0.66 mm
1/2" Sensor: 0.64 x 0.48 mm
1/3" Sensor: 0.48 x 0.36 mm		 C-mount
CVMS-20-OL 20X 25
mm		 2.2um 0.95um 0.35 2/3" Sensor: 0.44 x 0.33 mm
1/2" Sensor: 0.32 x 0.24 mm
1/3" Sensor: 0.24 x 0.18 mm		 C-mount



CVMS-10 SERIES

E.F.L pf TUBE LENS Magnification
of Tube Lens		 Magnification on CCD Illumination Method MOUNT
100mm / 200mm 0.5X / 1.0X Magnification is changed
according to objectivelens		 Koehler Illumination C-mount



CVMS- MULTI SERIES

E.F.L pf TUBE LENS Magnification
of Tube Lens		 Magnification on CCD Illumination Method MOUNT
100/150/200/300/400(mm) 0.5X / 0.75X /
1.0X /1.5X / 2.0X		 Magnification is changed
according to objectivelens		 Koehler Illumination C-mount



CVMS- CA SERIES

E.F.L pf TUBE LENS Magnification
of Tube Lens		 Magnification on CCD Illumination Method MOUNT
50/100/150/200 (mm) 0.5X / 0.75X /
1.0X /1.5X / 2.0X		 Magnification is changed
according to objectivelens		 Koehler Illumination C-mount

이 기업의 다른 제품
Halogen
HalogenLOS-HS-100W, 150W
Objective Lens
Objective LensLOS Series

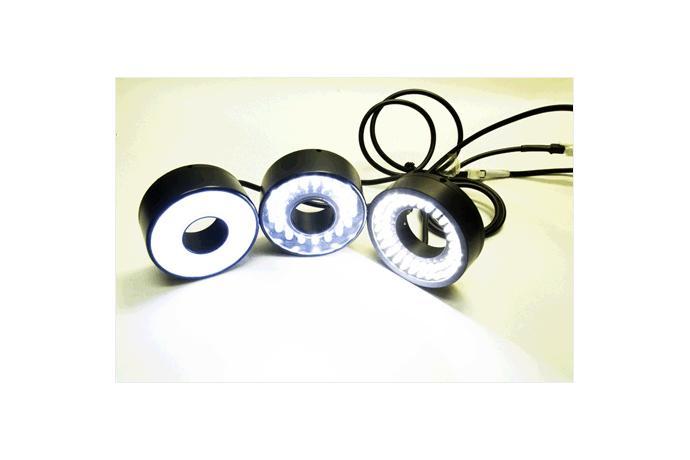

Ring Light
Ring Light

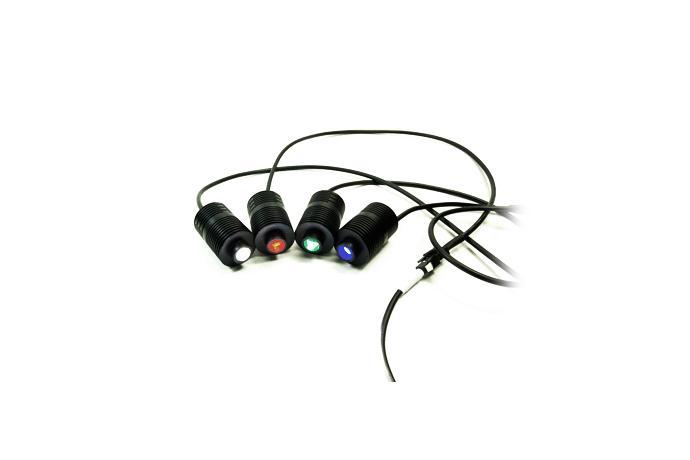

Spot Light
Spot Light
High-Power LED Controller
High-Power LED Controller

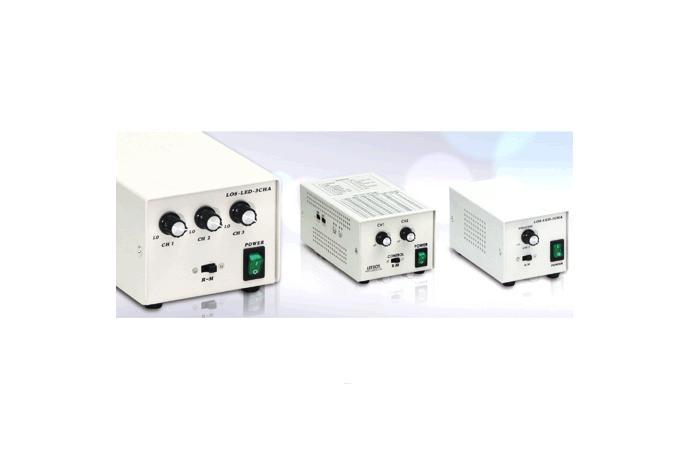

Analog LED Controller
Analog LED ControllerLPA Series
LASER Series

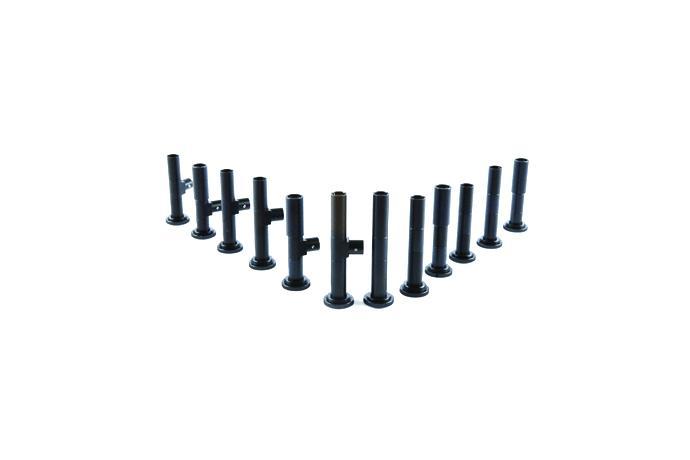

Tube Lens
Tube LensCVMS05120 Series

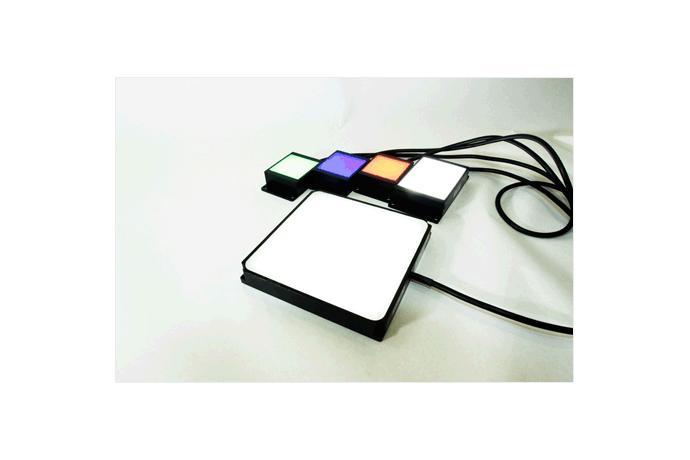

Flat Light
