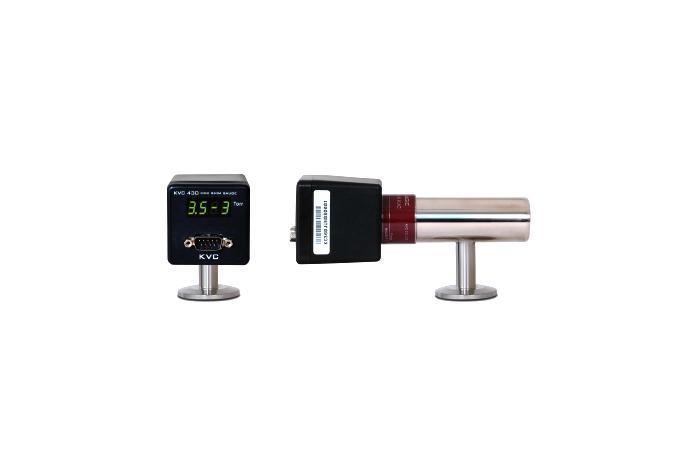

KC430 SHIM Gauge Compact Module

◾Measurement Range : 1000 ~ 1.0E-3Torr
◾Analog Output : 1V/decade, 0~6Vdc
◾input Power : +24Vdc, 2Watts max
◾Fitting : 1/8NPT, 15m O.D, NW16KF, NW25KF, 1.33"CF, 2.75"CF, 1/4"VCR
◾Gauge axis must be horizontal to provide accurate measurement above 1Torr
