지금 보고 계신 제품의 제조사에요
(주)금성하이텍
제조사
(주)금성하이텍[바로가기]
제품 타입
기계
브랜드
-
SKU
134706
제품명

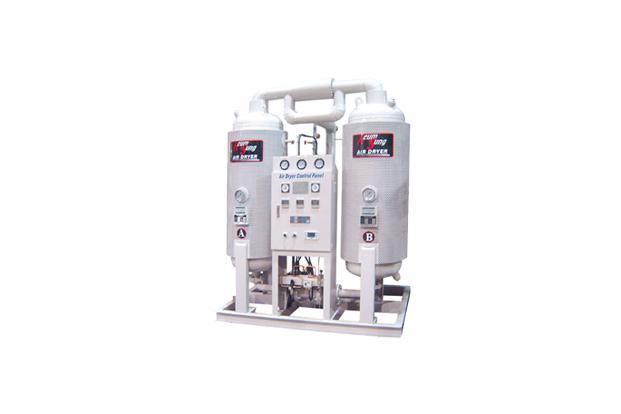

흡착식 에어드라이어 (히터외장식)
모델명
KHP-60N, KHP-90N, KHP-120N, KHP-150N, KHP-180N, KHP-200N, KHP-250N, KHP-300N, KHP-350N, KHP-400N, KHP-500N, KHP-600N, KHP-750N, KHP-900N, KHP-1100N, KHP-1300N, KHP-1600N, KHP-1800N, KHP-2100N, KHP-2600N, KHP-3100N, KHP-3500N, KHP-4000N, KHP-4500N, KHP-5300N, KHP-6000N, KHP-7000N, KHP-8800N
사이즈
-
중량
-
제품 상세 정보
구조 및 특징
ㆍ신뢰성있고 안정적인 노점보장 (-40℃ ~ -95℃)
ㆍ관리자의 편의성을 감안한 최신 디지털 운전조직 (Option)
ㆍ 내구성과 내열성이 우수한 신뢰성있는 구동밸브 적용
ㆍ 노점운전(PPD-2)에 의한 운전비 절감효과 (option)
ㆍPPR-System에 의한 획기적인 운전비 절감 (option)
표준 설계조건
ㆍ입구공기 압력 : 7kg/㎠ (STD)
10~50kg/㎠ (OPN)
ㆍ입구공기온도 : max 40℃
ㆍ출구보증노점 : -40℃ (STD), -75℃ (OPN)
ㆍ Operating Cycle : 8hrs/cycle
KHP-Series Flow schematic
| Model | Capacity (Nm³/hr) | IN/OUT Size | Dimension (mm) | 흡착제량 (kg/2towers) | 전기히터용량 (kg) | Weight (kgs) | ||
| L | W | H | ||||||
| KHP-60N | 100 | 25A | 1,200 | 800 | 1,950 | 38 | 1.0 | 190 |
| KHP-90N | 160 | 25A | 1,400 | 800 | 2,080 | 68 | 1.5 | 295 |
| KHP-120N | 215 | 25A | 1,400 | 800 | 1,778 | 82 | 3.0 | 320 |
| KHP-150N | 250 | 40A | 1,440 | 800 | 2,010 | 92 | 3.0 | 330 |
| KHP-180N | 285 | 40A | 1,400 | 800 | 2,160 | 106 | 3.0 | 350 |
| KHP-200N | 350 | 40A | 1,500 | 900 | 1,890 | 130 | 3.0 | 440 |
| KHP-250N | 430 | 40A | 1,500 | 900 | 2,200 | 156 | 4.0 | 500 |
| KHP-300N | 520 | 50A | 1,550 | 1,000 | 2,102 | 186 | 4.0 | 650 |
| KHP-350N | 600 | 50A | 1,550 | 1,000 | 2,182 | 220 | 5.0 | 700 |
| KHP-400N | 700 | 50A | 1,600 | 1,025 | 2,130 | 260 | 6.0 | 800 |
| KHP-500N | 860 | 50A | 1,600 | 1,025 | 2,161 | 328 | 7.5 | 900 |
| KHP-600N | 1,040 | 65A | 1,900 | 1,100 | 2,470 | 380 | 10.5 | 1,100 |
| KHP-750N | 1,300 | 65A | 1,900 | 1,100 | 2,420 | 460 | 10.5 | 1,200 |
| KHP-900N | 1,560 | 80A | 2,100 | 1,150 | 2,380 | 560 | 11.5 | 1,300 |
| KHP-1100N | 1,900 | 80A | 2,150 | 1,200 | 2,520 | 680 | 13.5 | 1,550 |
| KHP-1300N | 2,250 | 80A | 2,200 | 1,250 | 2,530 | 800 | 15.0 | 1,850 |
| KHP-1600N | 2,720 | 100A | 2,300 | 1,400 | 2,650 | 958 | 22.0 | 2,200 |
| KHP-1800N | 2,060 | 100A | 2,500 | 1,550 | 2,620 | 1,080 | 25.0 | 2,300 |
| KHP-2100N | 6,000 | 100A | 2,500 | 1,550 | 2,670 | 1,260 | 28.0 | 2,600 |
| KHP-2600N | 4,420 | 125A | 2,600 | 1,700 | 2,660 | 1,550 | 35.0 | 3,000 |
| KHP-3100N | 5,370 | 150A | 3,200 | 1,800 | 2,700 | 1,880 | 40.0 | 5,000 |
| KHP-3500N | 6,000 | 150A | 3,300 | 1,800 | 2,700 | 2,100 | 45.0 | 5,200 |
| KHP-4000N | 6,800 | 150A | 2,500 | 2,000 | 2,750 | 2,400 | 50.0 | 5,500 |
| KHP-4500N | 7,650 | 150A | 2,600 | 2,000 | 2,750 | 2,680 | 60.0 | 6,000 |
| KHP-5000N | 8,400 | 150A | 2,700 | 2,000 | 2,800 | 6,940 | 66.0 | 6,500 |
| KHP-5300N | 9,000 | 150A | 2,800 | 2,100 | 2,900 | 3,140 | 70.0 | 7,500 |
| KHP-6000N | 10,200 | 200A | 4,000 | 2,200 | 3,000 | 3,560 | 80.0 | 8,000 |
| KHP-7000N | 12,000 | 200A | 4,200 | 2,400 | 3,250 | 4,200 | 90.0 | 9,000 |
| KHP-8800N | 15,000 | 250A | 4,600 | 2,690 | 3,535 | 5,240 | 110.0 | 12,500 |
주. H높이는 Outlet Nozzle 중심 기준입니다.
