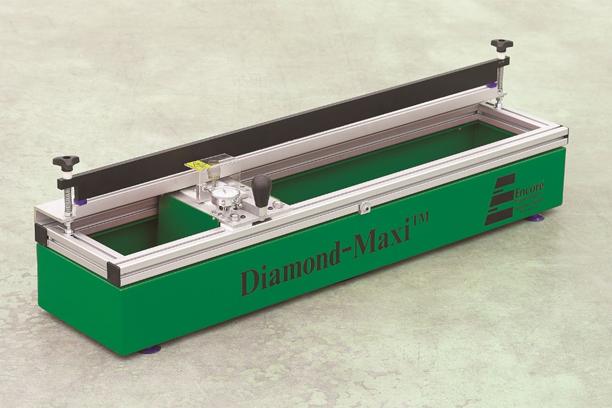

Diamond MAXI is a precision medium format sharpener for squeegees 38”(97cm) or less. This portable table-top design fits anywhere and comes equipped with two industrial strength diamond sharpening wheels.
Machine specifications
Model |
MX-238, MXSV-238 |
Sharpening Length |
38” (97cm). |
Sharpening Profile |
Two straight/square-edge wheels supplied as standard (other profiles and custom wheels available). |
Diamond Wheel Grit |
#120 and #230 grit supplied standard (other grit sizes available). |
Material removal |
Recommended rate not more than 0.0025’’ (0.05-0.10mm). |
Blade Height Tolerance |
+/- 0.006″ (0.15mm) measured from end to end. |
Power Requirement |
115-120v AC 2Amp (220-230v AC 1Amp optional). |
Physical Size (Table top unit) |
Length: 48″ (122 cm) Height: 46″ (117 cm) Width: 27″ (69 cm). |
Advantages
- Sharpens a wide range of squeegee materials (some materials sharpen better than others*), including single and multiple durometer.
- Uniform grinding pressure and adjustment for material removal.
- Secures squeegee by the blade during sharpening.
- Accommodates various squeegee holders and handles.
- Includes two indestructible diamond wheels with a 5-year warranty against diamond wear in normal use.
