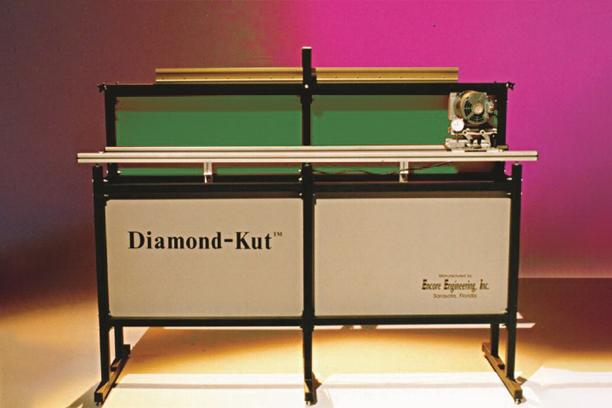

Diamond KUT Sharpener
모델명
DK-160
자료
Catalog-Fimor-Diamond KUT Sharpener
구매정보
provider logo
FIMOR SAS

Serilor 제품, 스퀴지, 샤프너, 액세서리, 스크린 인쇄 등

연락처
+33 2 43 40 66 00
이메일
-
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
제품 타입
기계
브랜드
-
SKU
138824
제품명
Diamond KUT Sharpener
모델명
DK-160, DK-176, DK-260, DK-276
사이즈
-
중량
-
제품 상세 정보

Diamond KUT is a high quality, manually-operated sharpener for longer squeegees in two sizes to sharpen up to 60” (153cm) or 76” (193cm). Eliminates operator error by holding squeegee blade parallel to grinding wheel during sharpening.

Machine specifications

Model DK-260, DK-276
Sharpening Length 60″ (153cm) or 76″ (193cm)
Sharpening Profile Two straight/square-edge wheels supplied as standard
Diamond Wheel Grit #100 and #360 grit supplied as standard (other grit sizes available)
Material removal Recommended rate 0.002-0.005″ (0.05-0.10mm) – Grit dependent
Blade Height Tolerance +/- 0.006″ (0.15mm) measured from end to end
Edge Straightness Adjustable from -0.050″ to +0.050″ camber (-1.22mm to +1.22mm camber)
Power Requirement 115-120v AC15Amp (230v AC optional)
Physical Size 60’’ (153cm) Model:
Length: 80’’ (203 cm)
Height: 62’’ (157 cm)
Width: 27’’ (69 cm)

76’’ (193cm) Model:

Length: 96’’ (244 cm)
Height: 62’’ (157 cm)
Width: 27’’ (69 cm)



Advantages

  • Sharpens a wide range of squeegee materials (some materials sharpen better than others*), including single and multiple durometer.
  • Special squeegee-clamping mechanism accommodates all holder profiles without bending or flexing the blade during sharpening.
  • Unique vertical lift assures consistent parallelism between sharpening wheel and blade.
  • Includes two 6’’ indestructible diamond sharpening wheels with a 5-year warranty against diamond wear in normal use.
  • Fully enclosed sharpening wheel for maximum safety during use.
  • Prepared for the installation of a vacuum system to clean residue from the sharpened squeegee (vacuum not included).
