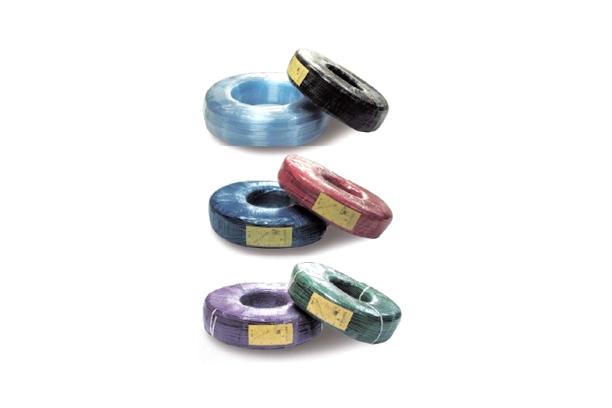

제품 상세 정보
| UL FILE NO. | E120268 |
| STANDARD | UL 224 |
| APPLICATION | Internal wiring of electronic equip. |
| RATING | Cat. No. DC-6, max. 105℃. 600V |
| MARKING | E120268 |
Standard Size
AWG No. | Nom. I.D (mm) | thickness Supplied(mm) | |
600V | 300V | ||
24 | 0.5 | 0.43~0.55 | 0.34~0.45 |
22 | 0.69 | 〃 | 〃 |
20 | 0.86 | 〃 | 〃 |
19 | 0.9 | 〃 | 〃 |
18 | 1.07 | 〃 | 〃 |
17 | 1.2 | 〃 | 〃 |
16 | 1.34 | 0.56~0.70 | 〃 |
15 | 1.45 | 〃 | 〃 |
14 | 1.6 | 〃 | 〃 |
13 | 1.93 | 〃 | 〃 |
12 | 2.16 | 〃 | 〃 |
11 | 2.41 | 〃 | 〃 |
10 | 2.69 | 〃 | 〃 |
9 | 3.0 | 〃 | 〃 |
8 | 3.38 | 〃 | 0.43~0.55 |
7 | 3.76 | 〃 | 〃 |
6 | 4.22 | 〃 | 〃 |
5 | 4.72 | 〃 | 〃 |
4 | 5.28 | 〃 | 〃 |
3 | 5.94 | 〃 | 〃 |
2 | 6.68 | 〃 | 〃 |
1 | 7.40 | 〃 | 〃 |
0 | 8.38 | 〃 | 〃 |
5/16inch | 7.9 | 〃 | 0.56~0.7 |
3/8inch | 9.5 | 〃 | 〃 |
7/16inch | 11.1 | 〃 | 〃 |
1/2inch | 12.7 | 〃 | 〃 |
9/16inch | 14.3 | 0.76~0.85 | 0.76~0.85 |
5/8inch | 15.9 | 〃 | 〃 |
3/4inch | 19 | 〃 | 〃 |
7/8inch | 22.2 | 〃 | 〃 |
1inch | 25.4 | 〃 | 〃 |
11/16inch | 27 | 〃 | 〃 |
11/4inch | 31.8 | 0.81±0.6 | 〃 |
