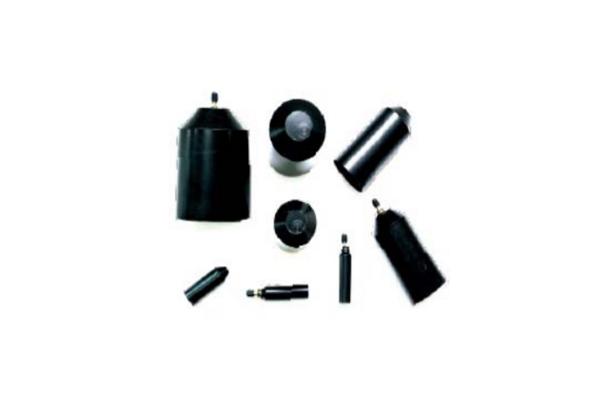

Heat Shrinkable End-Caps

모델명

시리즈

Heat Shrinkable End-Caps


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


031-637-9930

제품 상세 설명

SHRINK RATIO

More than 50%

OPERATING TEMP.

-40℃~85℃

ELECTRICAL INSULATION

1000V

MATERIALS

Radiation crossed linked polyolefin

The internal coating of high grade hot melt sealant guarantees excellent bonding on plastic and metals

COLOR

Black

APPLICATION

Pressure-tight seal on the ends of communication, power cable and electric leads preventing from water electrical and mechanical protection.

TYPE

Valve type

Non Valve Type

ORDERING ON

With or with out adhesive sealant

REQUEST

Other Dimensions





Standard Size

Commercial (mm)

As Supplied Inner Dia(min)

Length

Adhesive Length

After Recovered (mm)

Inner Dia(Max)

Length(±10%)

Thickness(±20%)

16/8-70

16±5

70

35

8

70

2.2

20/8-70

20±5

70

35

8

70

2.3

30/14-90

30±5

90

45

14

90

3.0

40/19-90

40±5

90

45

19

90

3.3

55/27-115

55±7

115

50

27

115

3.3

75/35-125

70±5

140

60

35

140

3.5

100/50-140

100±5

140

70

50

140

3.5

120/70-155

120±5

155

80

70

155

40
